IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 36
4.2.5 Battery Connector
CN Label: CN7
CN Type:
2-pin header (1x2)
CN Location:
See
Figure 4-7
CN Pinouts:
See
Table 4-8
The battery connector is connected to a backup battery. The battery connector is also
used to reset the CMOS memory if the incorrect BIOS settings have been made and the
system cannot boot up.

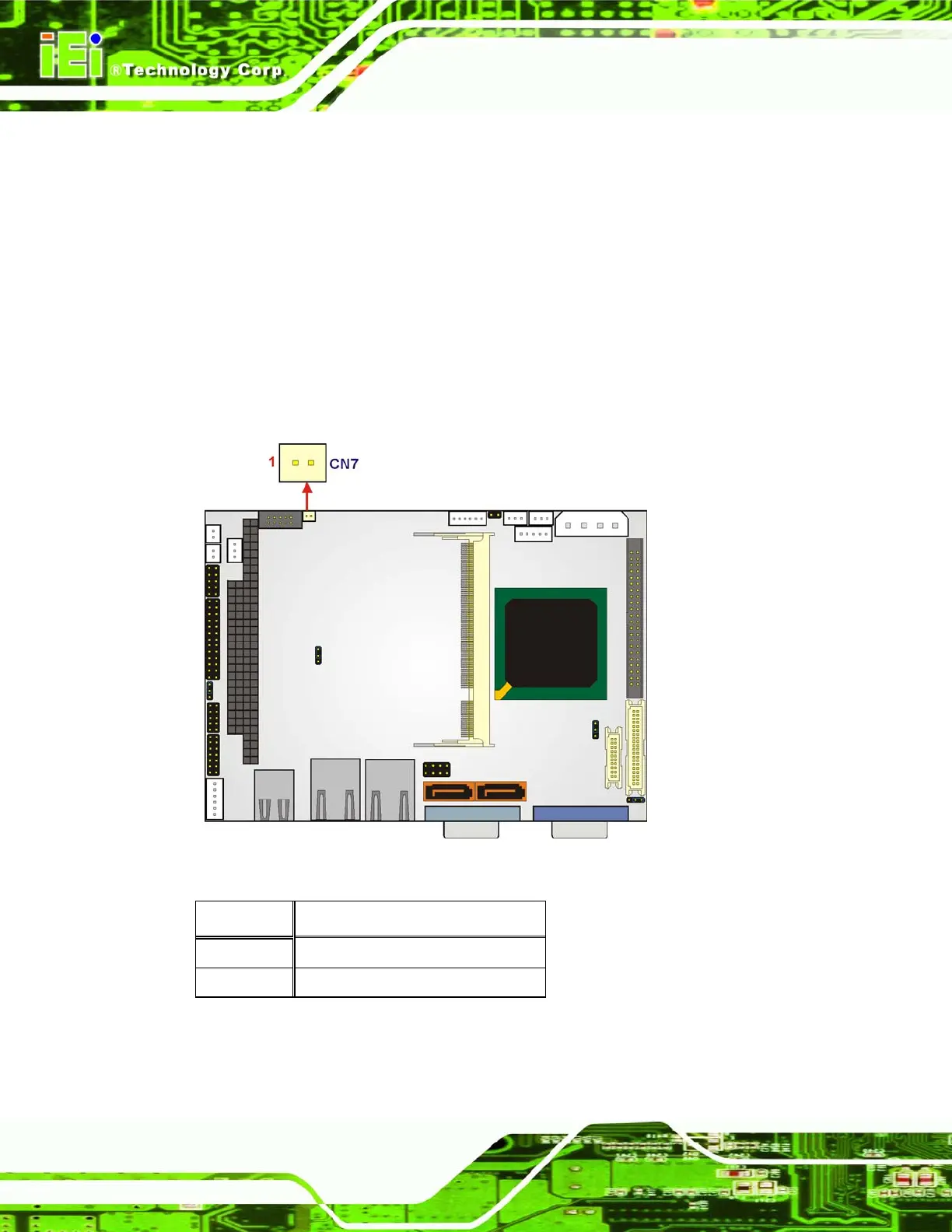

Figure 4-7: Battery Connector Location
PIN NO. DESCRIPTION
1 Battery+
2 Ground
Table 4-8: Battery Connector Pinouts
