IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 44

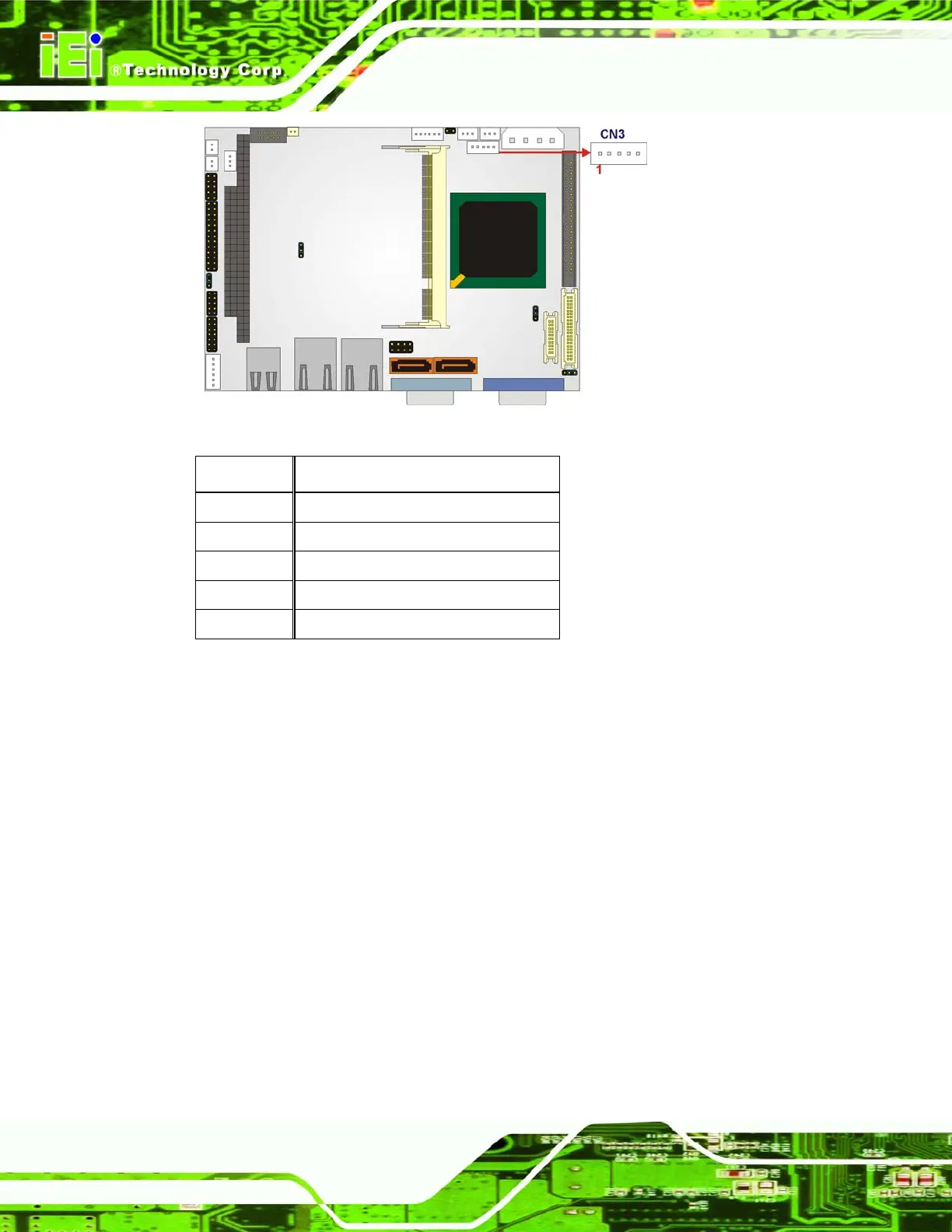

Figure 4-13: Inverter Connector Locations
PIN NO. DESCRIPTION
1 ADJ (Def: GND)
2 GND
3 12 V
4 GND
5 BL_EN
Table 4-14: Inverter Power Connector Pinouts
4.2.12 Keyboard/Mouse Connector
CN Label: CN17
CN Type:
6-pin header (1x6)
CN Location:
See
Figure 4-14
CN Pinouts:
See
Table 4-15
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.
