WAFER-LX Motherboard
Page 31

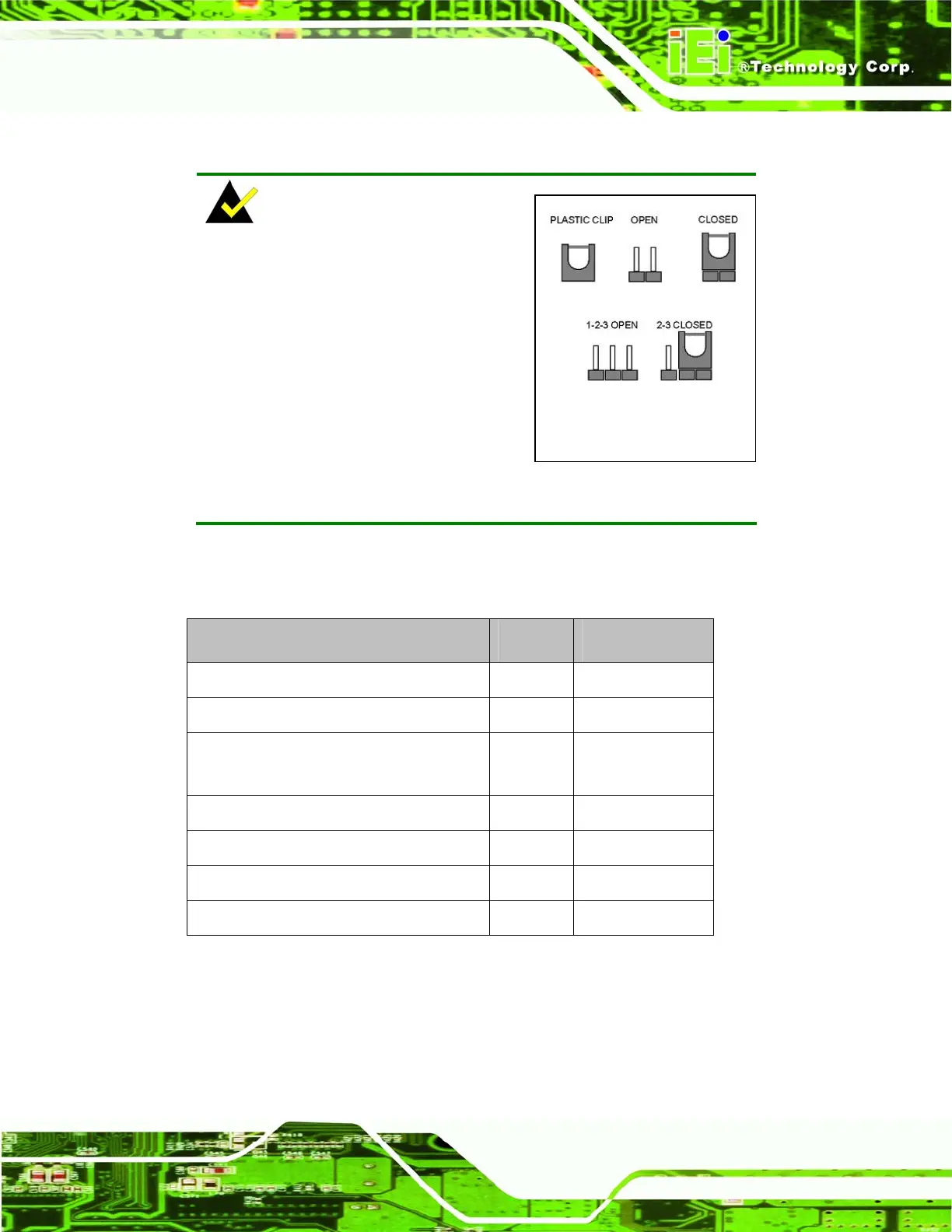

4.1.4 On-board Jumpers
NOTE:
A jumper is a metal bridge that is
used to close an electrical circuit. It
consists of two metal pins and a small
metal clip (often protected by a plastic
cover) that slides over the pins to
connect them. To CLOSE/SHORT a
jumper means connecting the pins of
the jumper with the plastic clip and to
OPEN a jumper means removing the plastic clip from a jumper.
Table 4-3 lists the on-board jumpers. Detailed descriptions of these jumpers can be found
in Section
5.5 on page 69.
Description Label Type
AT power select JP1 2-pin header
COM3 mode setup JP2 3-pin header
COM1 and COM2 pin 9 setup
(Optional jumper)
JP3 10-pin header
LCD voltage selection JP4 3-pin header
CompactFlash® master/slave setup JP5 3-pin header
LCD type selection JP6 3-pin header
Clear CMOS CN7 2-pin header
Table 4-3: On-board Jumpers
Jumper
