IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 54
The TFT LCD LVDS can be connected to a TFT LCD screen directly.

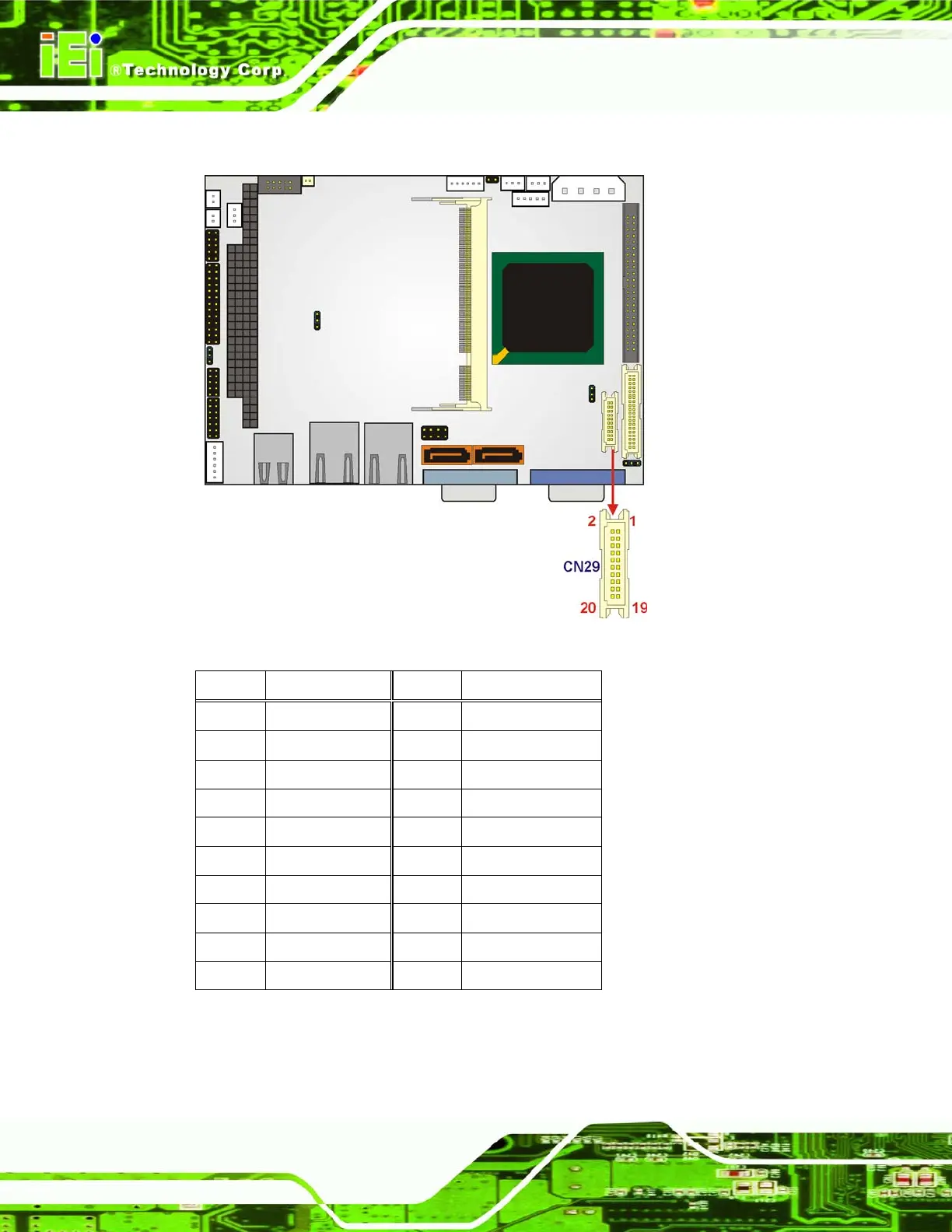

Figure 4-22: TFT LCD LVDS Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 GND
3 D0+ 4 D0-
5 D1+ 6 D1-
7 D2+ 8 D2-
9 CLK+ 10 CLK-
11 NC 12 NC
13 GND 14 GND
15 NC 16 NC
17 LCD_Vcc 18 LCD_Vcc
19 LCD_Vcc 20 LCD_Vcc
Table 4-23: TFT LCD LVDS Port Connector Pinouts
