IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 55
4.2.21 TFT LCD TTL Connector
CN Label: CN28
CN Type:
40-pin header (2x20)
CN Location:
See
Figure 4-23
CN Pinouts:
See
Table 4-24
The TFT LCD LVDS can be connected to a TFT LCD screen directly.

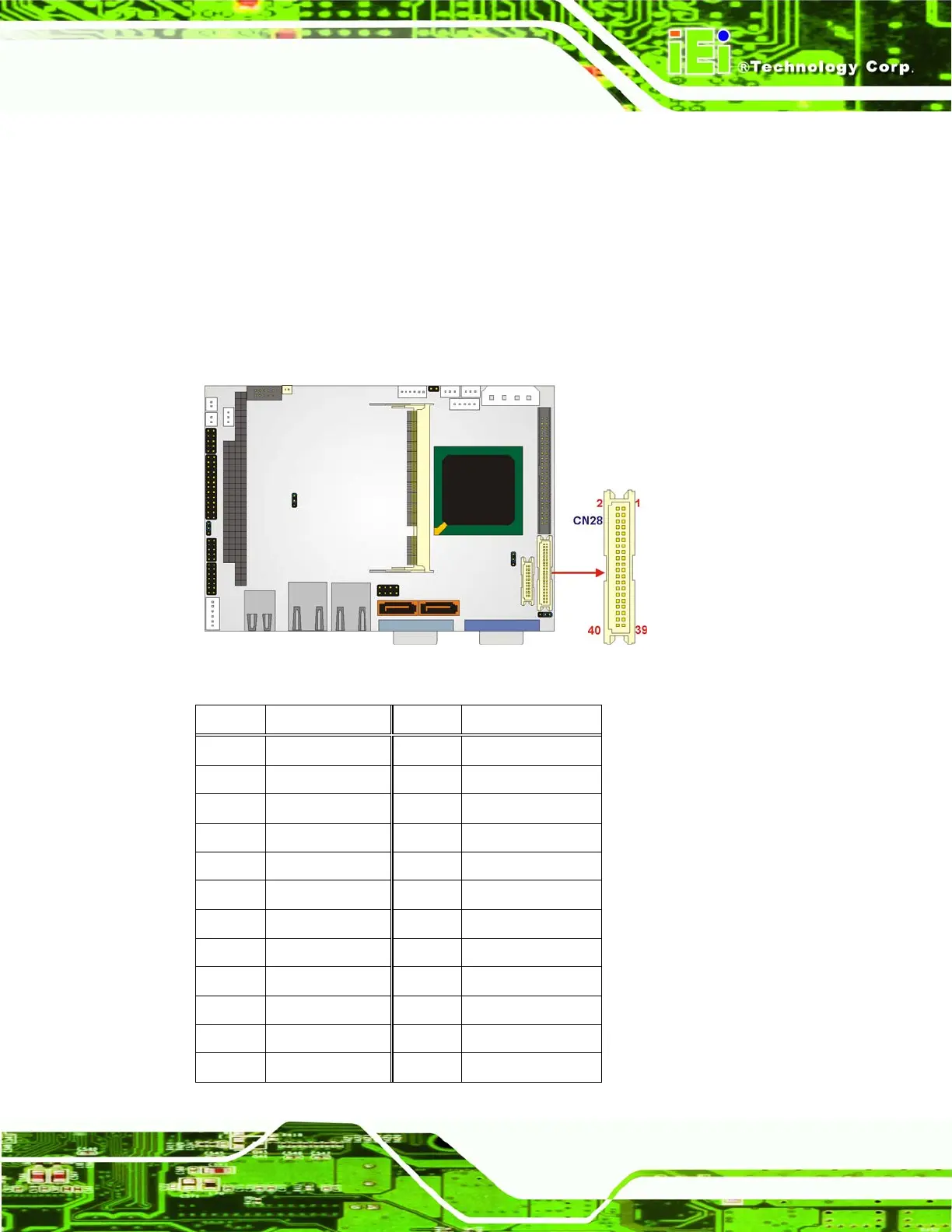

Figure 4-23: TFT LCD TTL Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCD_Vcc 2 LCD_Vcc
3 GND 4 GND
5 LCD_Vcc 6 LCD_Vcc
7 NC 8 GND
9 B0 10 B1
11 B2 12 B3
13 B4 14 B5
15 B6 16 B7
17 G0 18 G1
19 G2 20 G3
21 G4 22 G5
23 G6 24 G7
