IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 41
4.2.9 GPIO Connector
CN Label: CN14
CN Type:
10-pin header (2x5)
CN Location:
See
Figure 4-11
CN Pinouts:
See
Table 4-12
The General Purpose Input Output (GPIO) connector can be connected to external I/O
control devices including sensors, lights, alarms and switches.

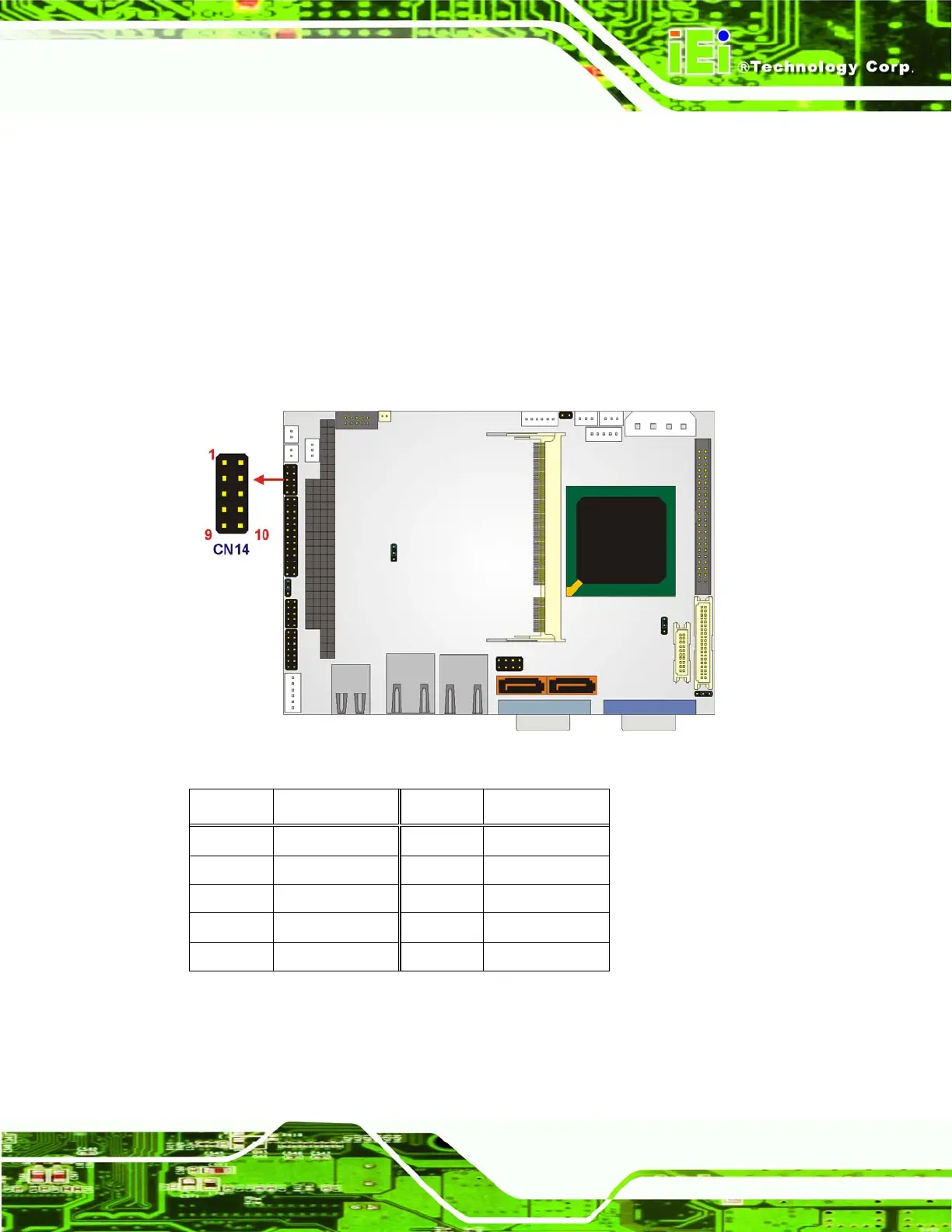

Figure 4-11: GPIO Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 5 V
3 GPO0 4 GPO1
5 GPO2 6 GPO3
7 GPI0 8 GPI1
9 GPI2 10 GPI3
Table 4-12: GPIO Connector Pinouts
