IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 48
CN Location:
See
Figure 4-17
CN Pinouts:
See
Table 4-18
The PC/104 power input connector provides power to the PC/104 expansion module
installed on the PC/104 slot.

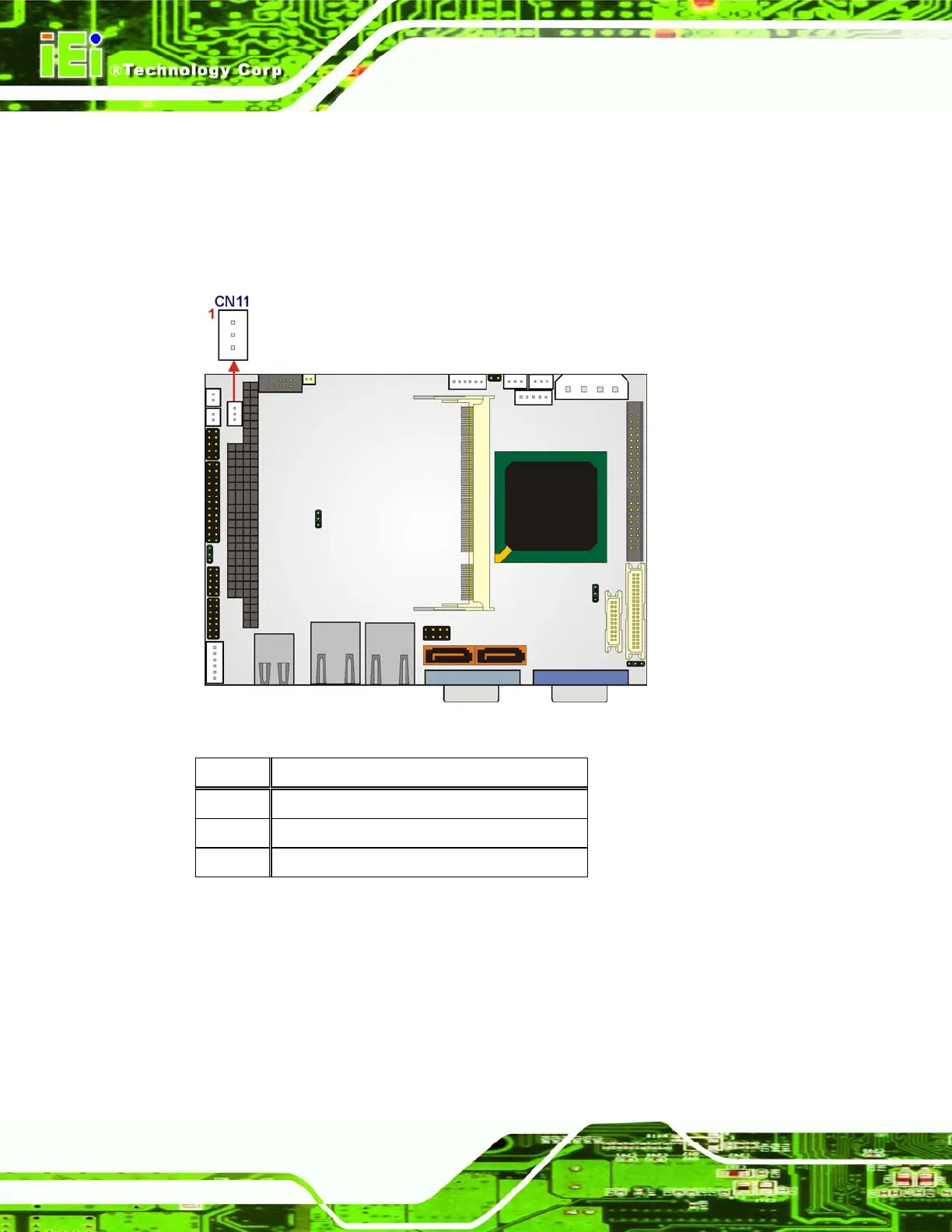

Figure 4-17: PC/104 Power Input Connector Pinouts
PIN NO. DESCRIPTION
1 -5 V
2 GND
3 -12 V
Table 4-18: PC/104 Power Input Connector Pinouts
4.2.16 PC/104 Slot
CN Label: CN10
CN Type:
104-pin PC/104 slot
CN Location:
See
Figure 4-18
