IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 45

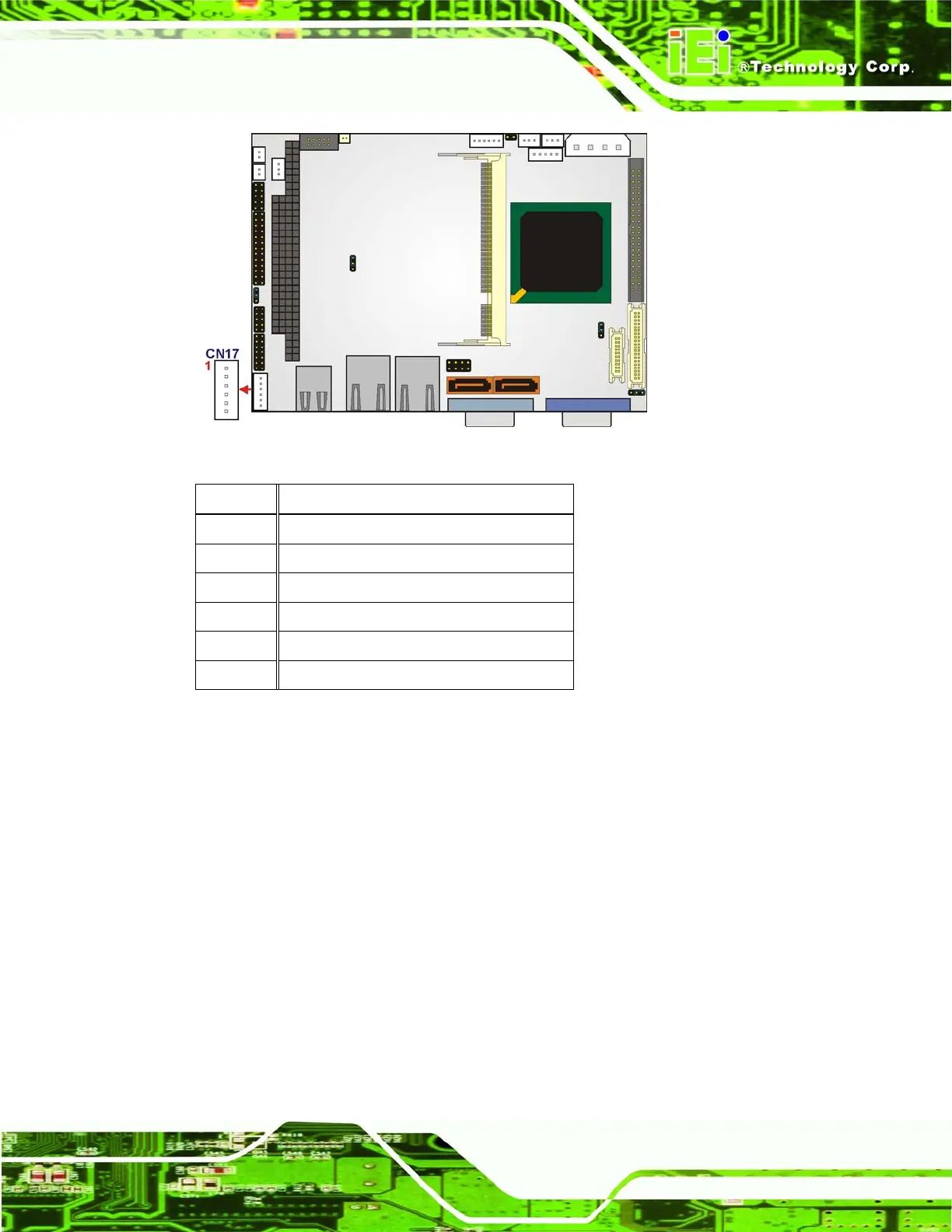

Figure 4-14: Keyboard/Mouse Connector Location
PIN NO. DESCRIPTION
1 +5 V
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GND
Table 4-15: Keyboard/Mouse Connector Pinouts
4.2.13 LED Connector
CN Label: CN5
CN Type:
6-pin header (1x6)
CN Location:
See
Figure 4-15
CN Pinouts:
See
Table 4-16
The LED connector (CN5) connects to an HDD indicator LED and a power LED on the
system chassis to inform the user about HDD activity and the power on/off status of the
system.
