IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 42
4.2.10 IDE Connector
CN Label: CN30
CN Type:
44pin header (2x22)
CN Location:
See
Figure 4-12
CN Pinouts:
See
Table 4-13
One 44-pin IDE device connector on the WAFER-LX motherboard supports connectivity to
Ultra ATA/33/66/100 IDE devices with data transfer rates up to 100 MB/s.

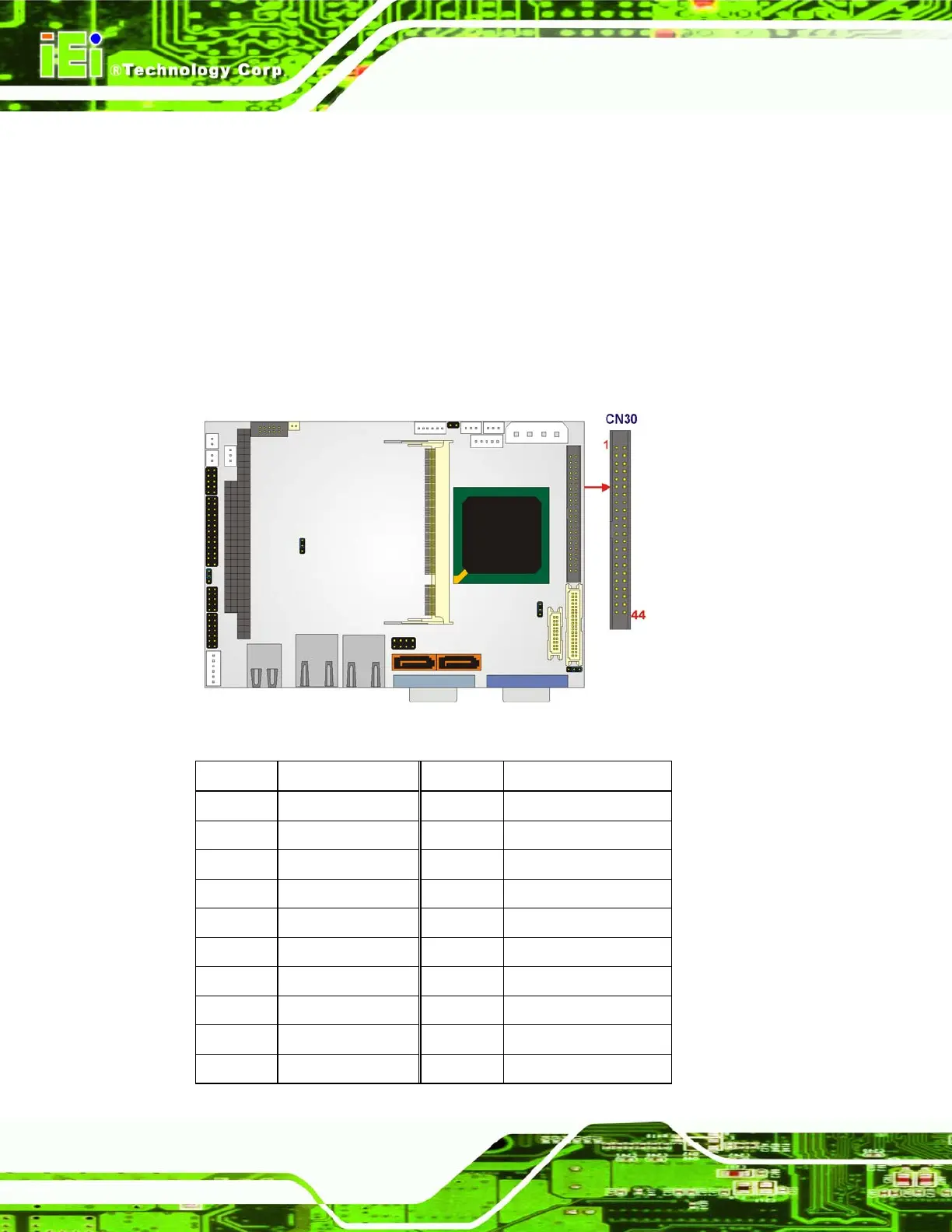

Figure 4-12: IDE Device Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RESET# 2 GROUND
3 DATA 7 4 DATA 8
5 DATA 6 6 DATA 9
7 DATA 5 8 DATA 10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 GROUND 20 N/C
