WAFER-LX Motherboard
Page 67
The SO-DIMM socket supports SDRAM DIMM speeds of 333 MHz and
400 MHz
5.4.1.2 DIMM Module Installation
The WAFER-LX motherboard has two DDR SDRAM DIMM sockets. To install the DIMM
modules, follow the instructions below.
Step 1: Locate the SO-DIMM module connector.
Step 2: Push the SO-DIMM chip into the socket at an angle. (See
Figure 5-1)
Step 3: Gently pull the arms of the SO-DIMM socket out and push the rear of the
SO-DIMM module down. (See
Figure 5-1)
Step 4: Release the arms on the SO-DIMM socket. They clip into place and secure the
SO-DIMM module in the socket. Step 0:

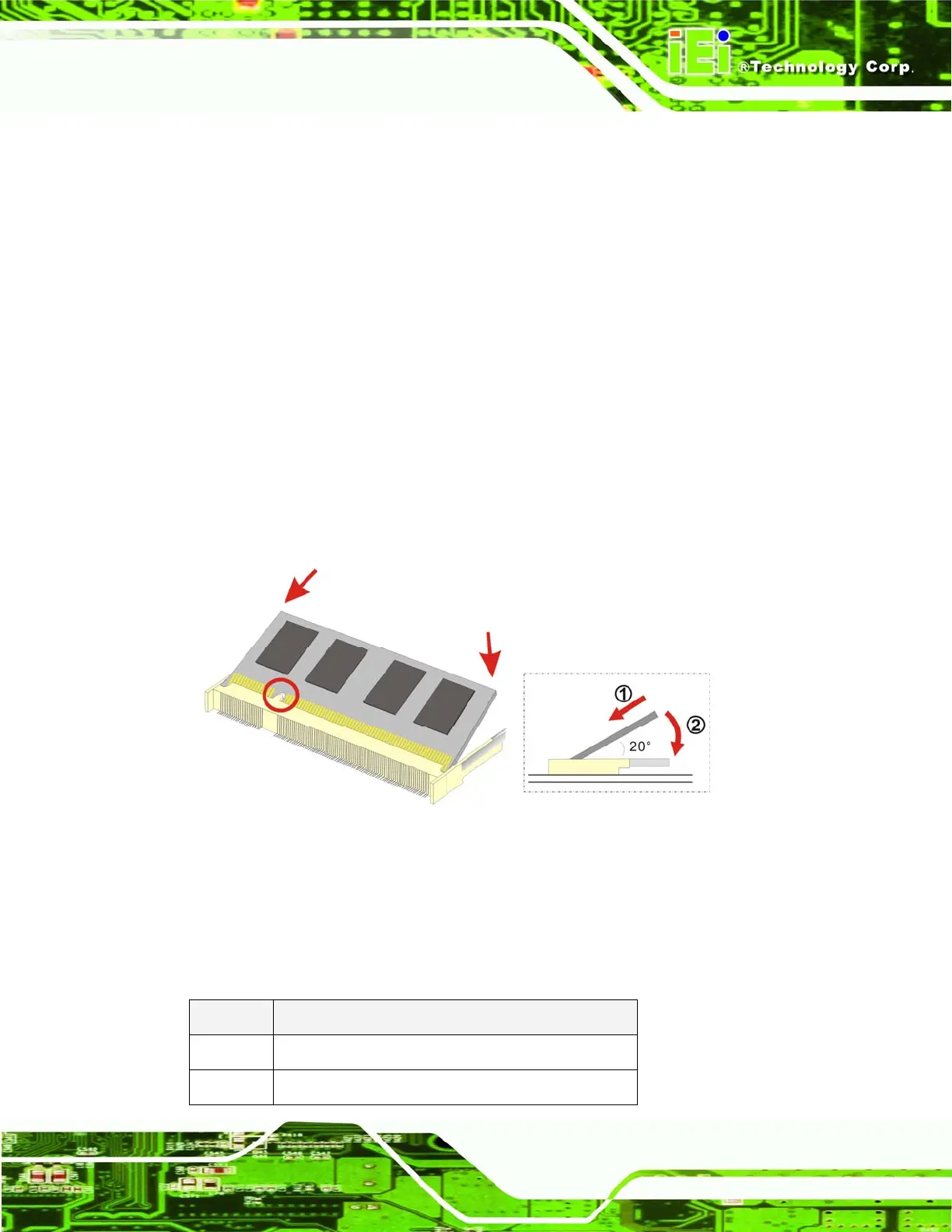

Figure 5-1: SO-DIMM Module Installation
5.4.2 Peripheral Device Connection
Cables provided by IEI that connect peripheral devices to the motherboard are listed in
Table 5-1. Cables not included in the kit must be separately purchased.
Quantity Type
1 Audio cable
1 IDE flat cable 44P/44P
