IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 39

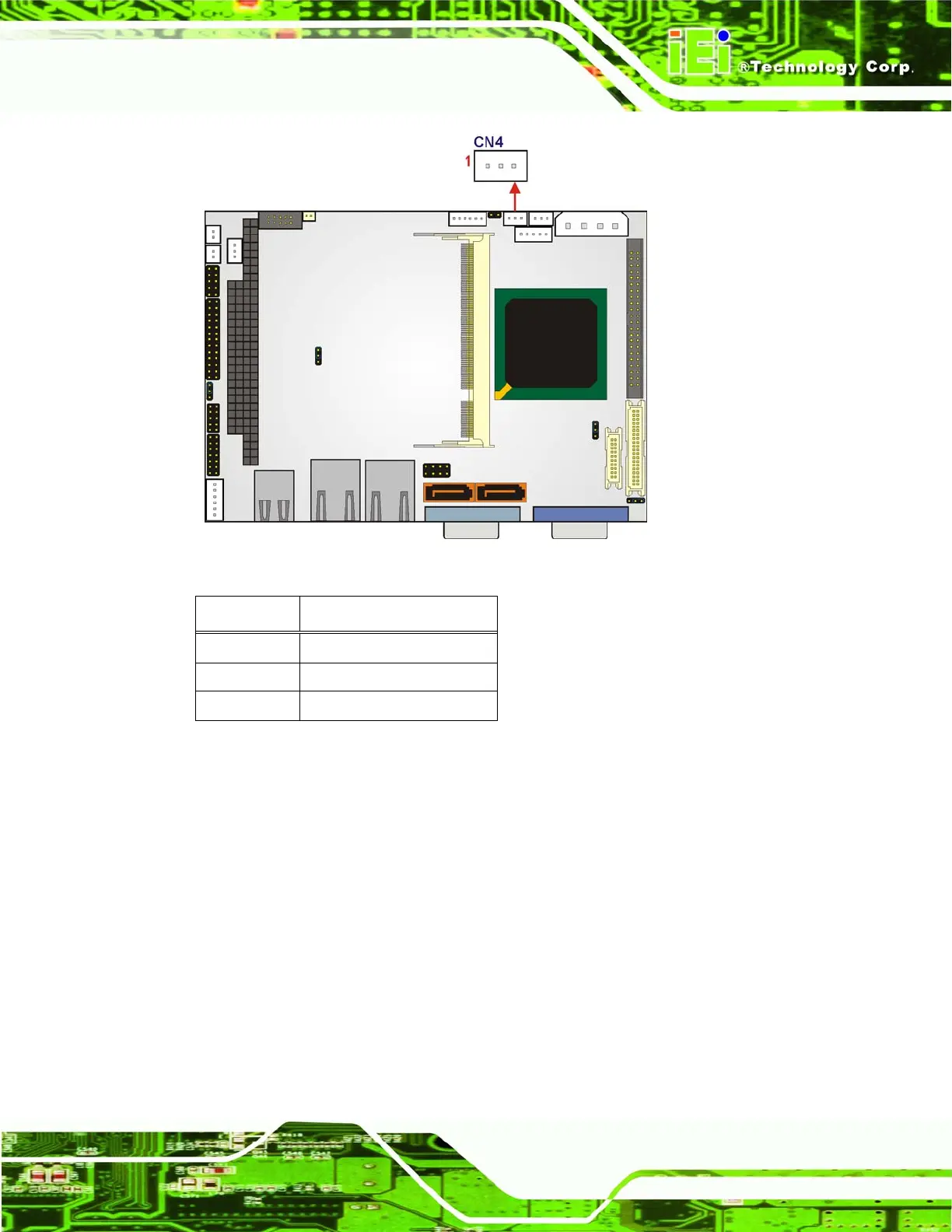

Figure 4-9: Fan Connector Location
PIN NO. DESCRIPTION
1 Fan Speed Detect
2 +5 V
3 GND
Table 4-10: Fan Connector Pinouts
4.2.8 Floppy Disk Connector (Slim Type, Optional)
CN Label: CN31 (solder side)
CN Type:
26-pin header (1 x 26)
CN Location:
See
Figure 4-10
CN Pinouts:
See
Table 4-11
The floppy disk connector (FDD1) is connected to a floppy disk drive.
