IEI Technology WAFER-LX-800-R12 User Manual

WAFER-LX Motherboard
Page 46

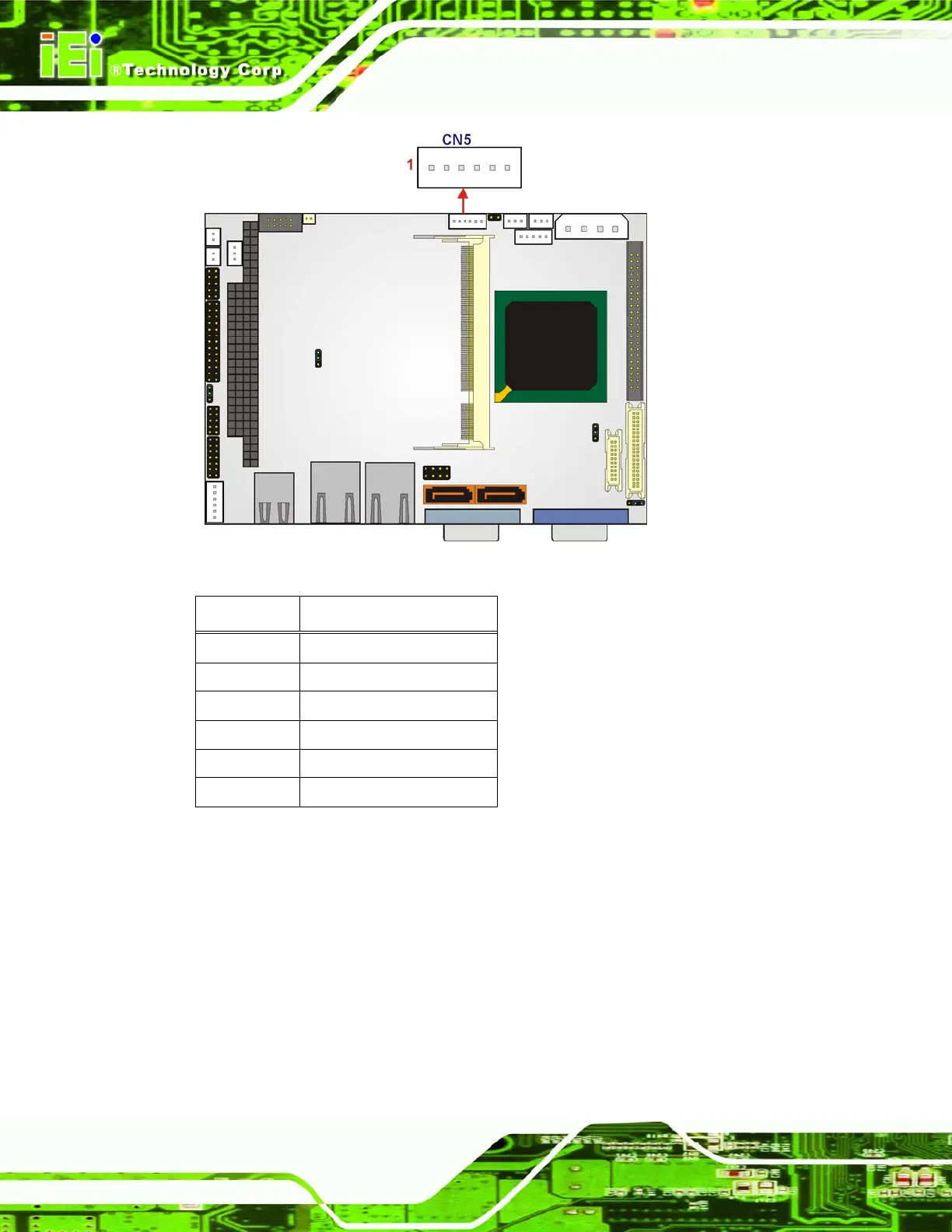

Figure 4-15: LED Connector Locations
PIN NO. DESCRIPTION
1 +5 V
2 GND
3 Power LED+
4 Power LED-
5 HDD LED+
6 HDD LED-
Table 4-16: LED Connector Pinouts
4.2.14 Print Port Connector
CN Label: CN15
CN Type:
26-pin header (2 x 13)
CN Location:
See
Figure 4-16
CN Pinouts:
See
Table 4-17
The WAFER-LX has one print port connector that can be connected directly to a printer.
