Integra Cusa Excel Service Manual

Other Features
Console Components
CUSA EXcel Ultrasonic Surgical Aspirator System Service Manual 4-19
Important
Adjusting the I.V. Pole
The I.V. pole, located at the top rear of the arm housing, adjusts to two locking
positions: down or up. A spring-loaded locking pin slides into a recessed area on
the pole to serve as a lock on the pole’s up/down motion. A button, located just
under the opening in which the pole rests in the arm housing, releases the locking
pin.
When in the down position, the pole also rotates approximately 90° allowing two
positions:
• Parallel to the console side
(position A)
• At a right angle to the side
(position B).
When in the up position, the
pole does not rotate. It remains
at position B. Notice that the
I.V. bag does not hang over the
console.
When a CUSA EXcel unit is
shipped, the I.V. pole is in
position A.
Raise the Pole
To raise the I.V. pole, do this:
Do not try to raise the pole from
Position A. Do not try to rotate the
pole when it is in the upper
position.
1.
Grasp the pole and rotate it to position B.
2. With one hand, hold the pole; with the other hand, press the button to release
the locking pin.
3. Raise the pole. As the pole clears its lower locking position, release the
button.
4. Continue to move the pole upward until it locks into position.
Lower the Pole
To lower the I.V. pole, do this:
1. With one hand, hold the pole; with the other hand, press the button to release
the locking pin.
2. Gently lower the pole. As the pole clears its upper locking position, release the
button.
3. Continue to move the pole downward until it locks into position.
4. After the pole has locked into its lower position, you can rotate it to position
A.

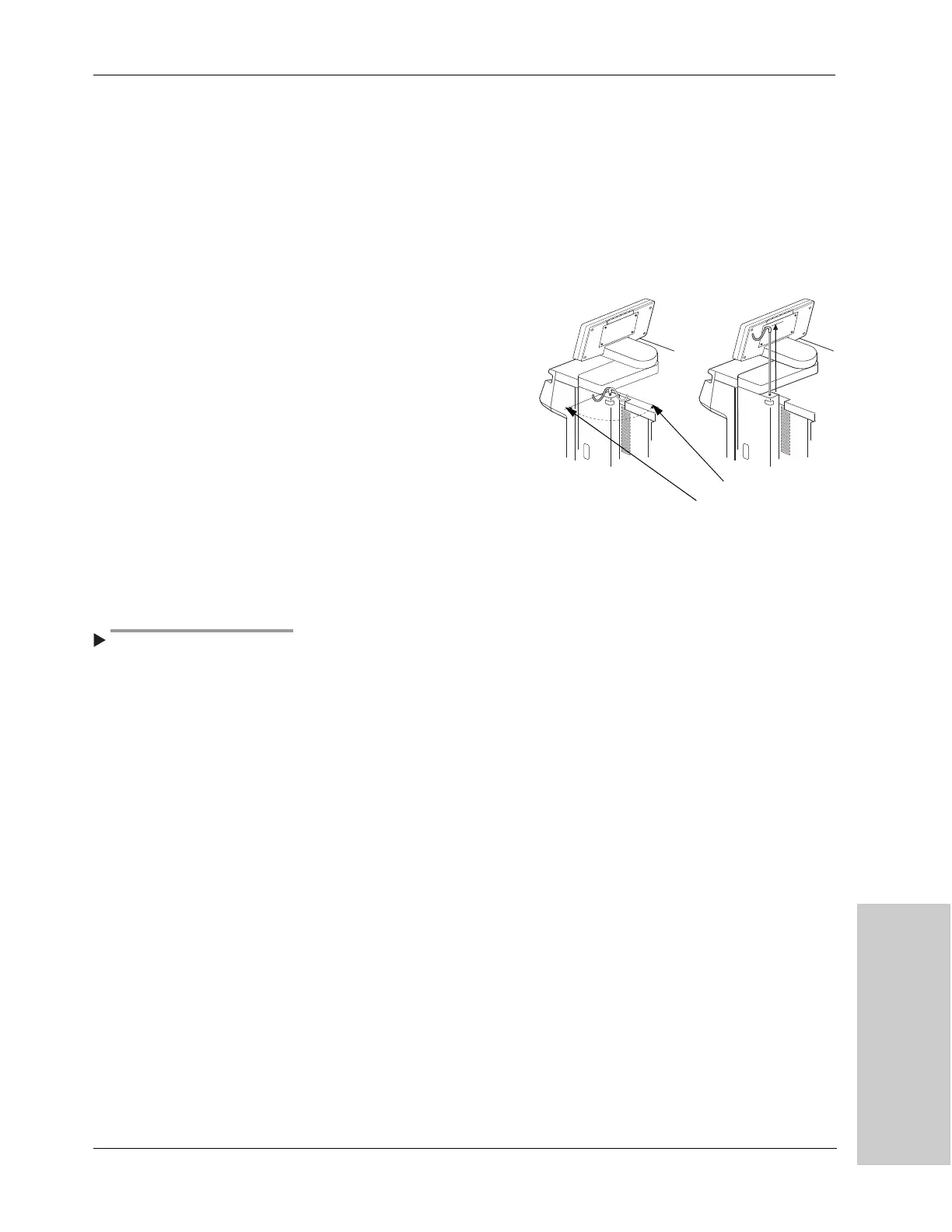

Position A
Position B
