Intel
®
Server Board S2600CP and Server System P4000CP TPS Intel
®
Light Guided Diagnostics
Revision 1.1
Intel order number G26942-003
101

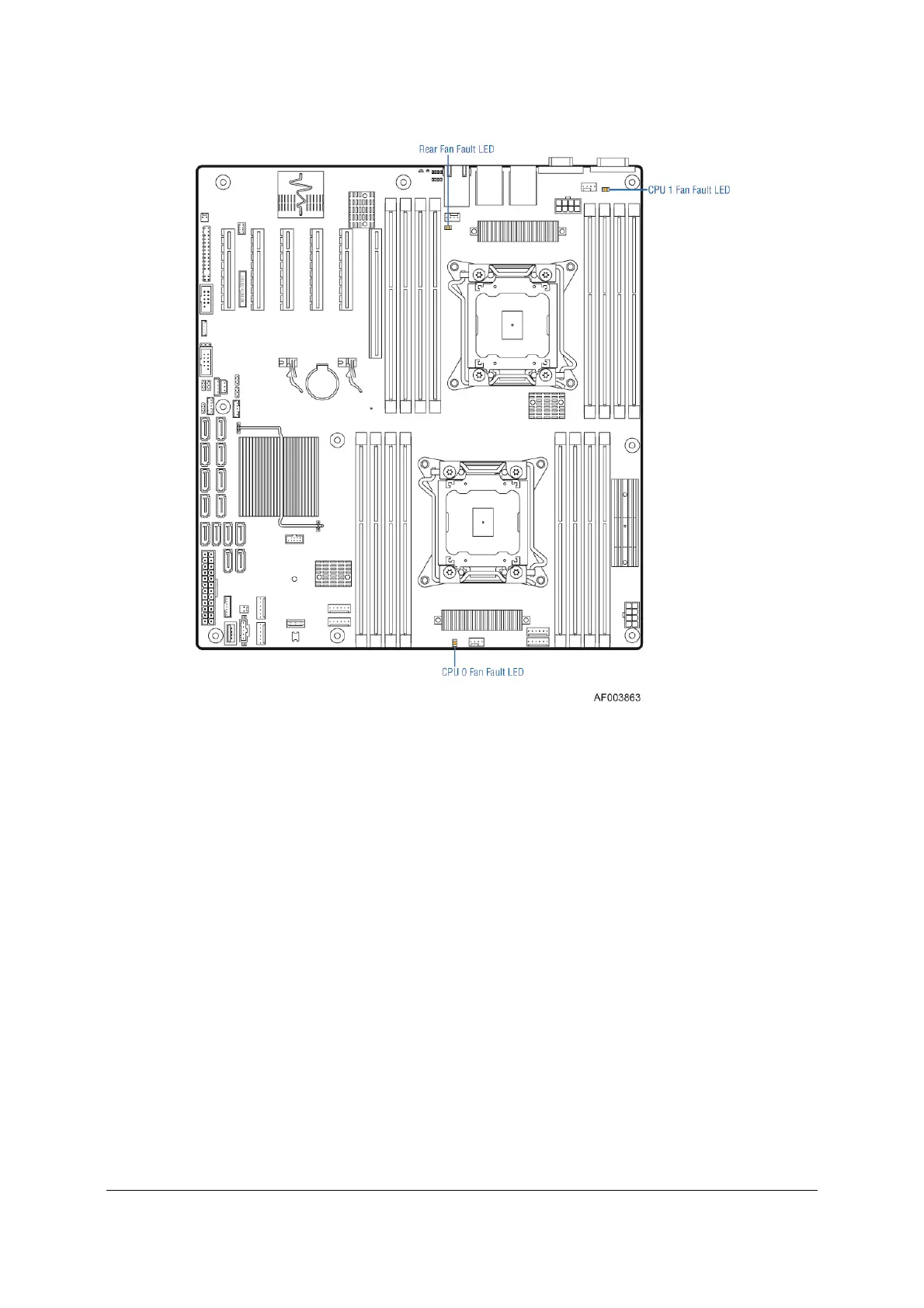

Figure 33. Fan Fault LED’s Location
9.3 DIMM Fault LEDs
The server board provide memory fault LED for each DIMM socket. These LEDs are located as
shown in the following figure. The DIMM fault LED illuminates when the corresponding DIMM
slot has memory installed and a memory error occurs.
