Intel S2600CP Family

Intel® Server System P4000CP Overview Intel
®
Server Board S2600CP and Server System P4000CP TPS
Revision 1.1
Intel order number G26942-003
24
P. Intel
®
RAID C600 Upgrade Key RKSATA8
Q. PCI-e Retainer
Figure 16. Intel
®
Server System P4308CP4MHGC View
Note: Airduct is not shown.
3.2.3 Intel
®
Server System P4208CP4MHGC View
A. 750-W Redundant Power Supply
B. AC Input Power Connector
C. I/O Ports
D. Alternate RMM4 Knockout
E. PCI Add-in Board Slot Covers
F. Serial Port Knockout
G. A Kensington* Cable Lock Mounting Hole
H. Padlock Loop
I. Alternate RMM4 Knockout
J. Front Control Panel
K. Hot-swap System Fan
L. 5.25” Peripheral Bays
M. Heat-sink
N. 8x3.5” Hot-swap HDD Cage
O. Intel
®
Server Board S2600CP4
P. EMI Cover
Q. Intel
®
RAID C600 Upgrade Key RKSAS8
R. PCI-e Retainer

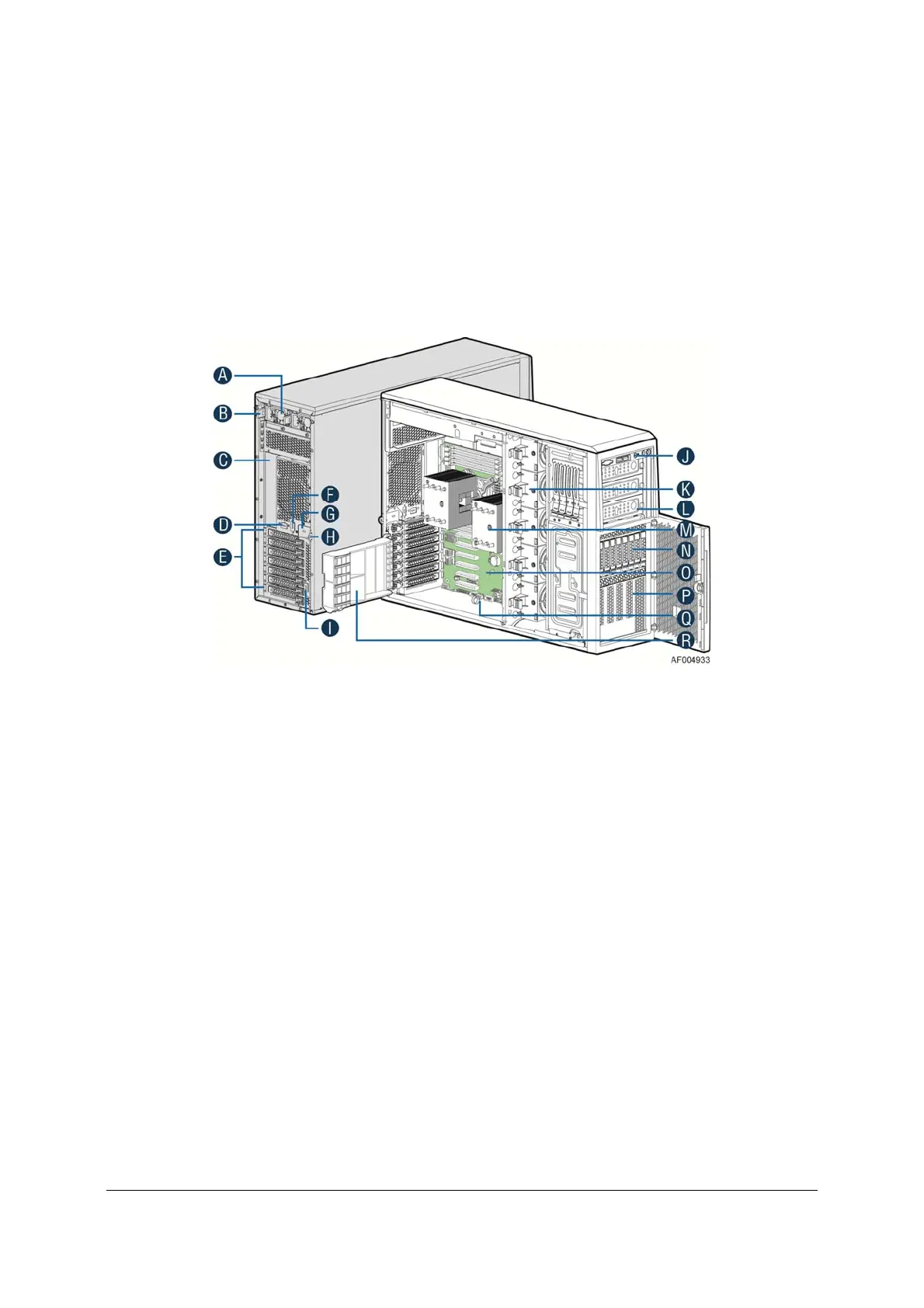

Figure 17. Intel
®
Server System P4208CP4MHGC View
Note: Airduct is not shown.
