Server Board S2600CP and Server System P4000CP TPS Intel® Server Board S2600CP Overview
Revision 1.1 7
Intel order number G26942-003
Figure 3. Intel
®
Server Board S2600CP2J, Dual NIC
2.2.1 Server Board Connector and Component Layout

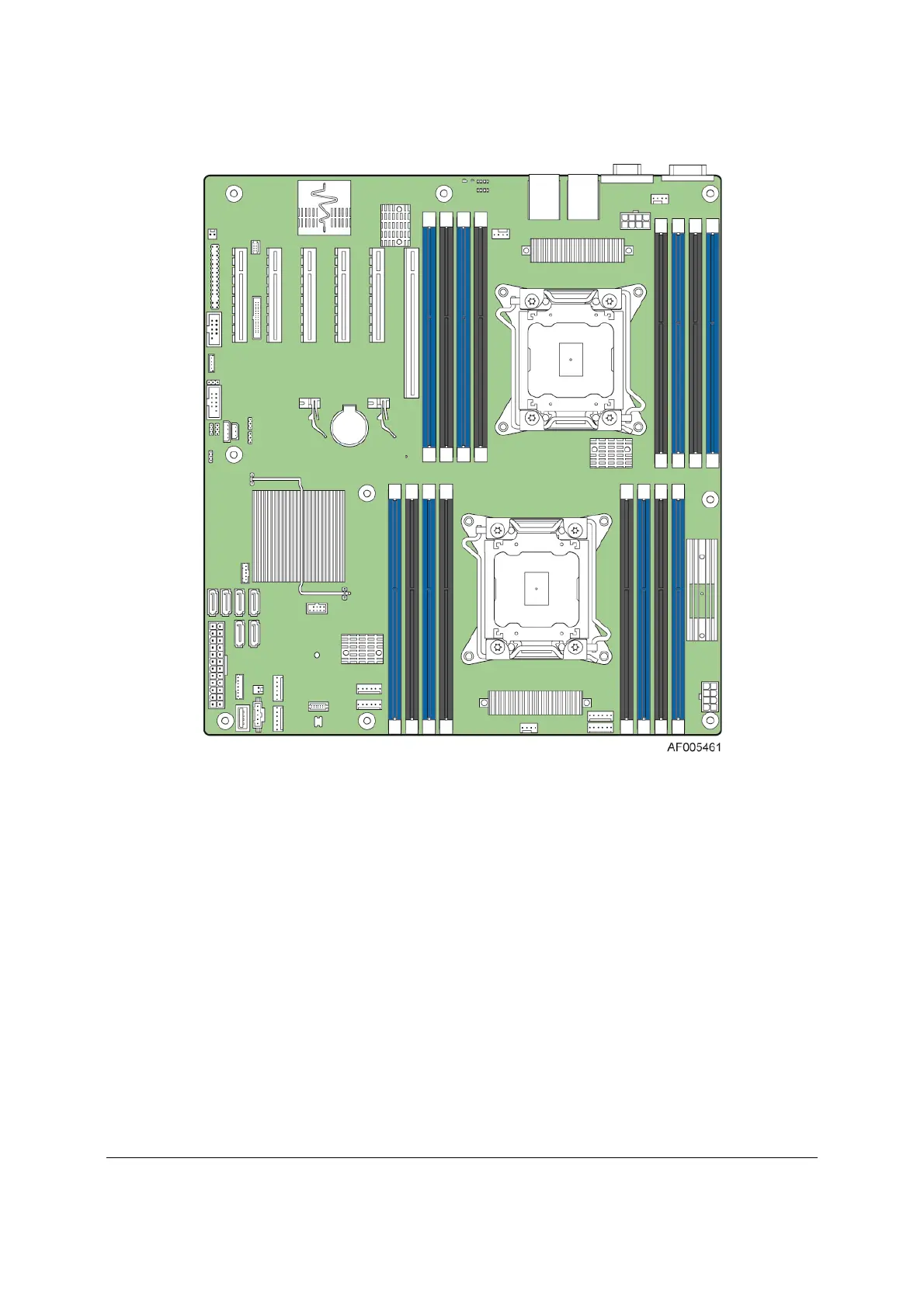

The following figure shows the layout of the server board. Each connector and major component
is identified by a number or letter, and a description is given below the figure.
