Intel
®
Light Guided Diagnostics Intel
®
Server Board S2600CP and Server System P4000CP TPS
Revision 1.1
Intel order number G26942-003
102

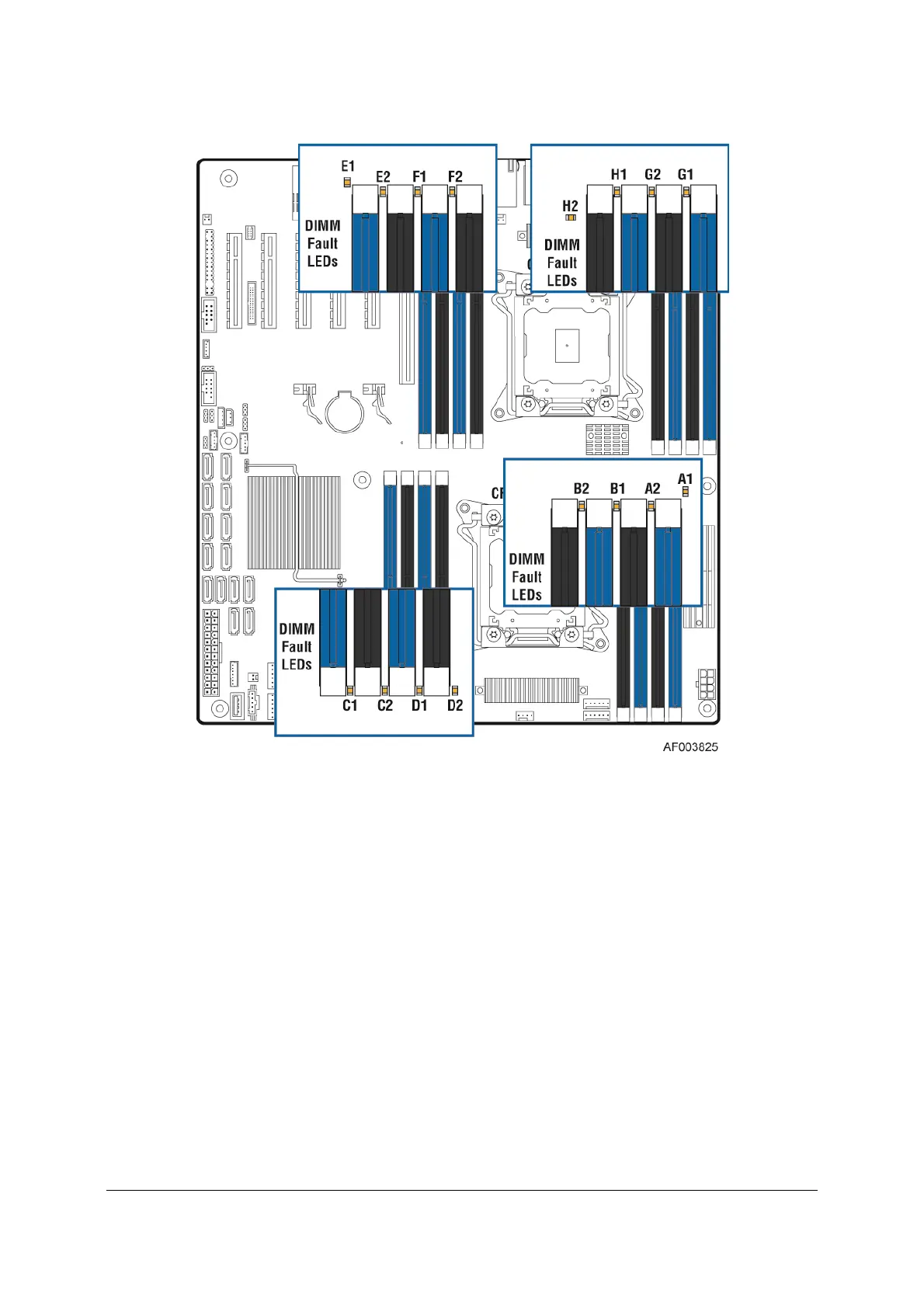

Figure 34. DIMM Fault LED’s Location
9.4 System ID LED, System Status LED and POST Code Diagnostic LEDs
The server boards provide LEDs for system ID, system status and POST code. These LEDs are
located in the rear I/O area of the server board as shown in the following figure.
