Intel
®
Server Board S2600CP and Server System P4000CP TPS Intel
®
Server System P4000CP Power System Options
Revision 1.1
Intel order number G26942-003
137
with a 2x25 card edge connector in the system. The AC plugs directly into the external face of
the power supply. Refer to the following figure. All dimensions are nominal.

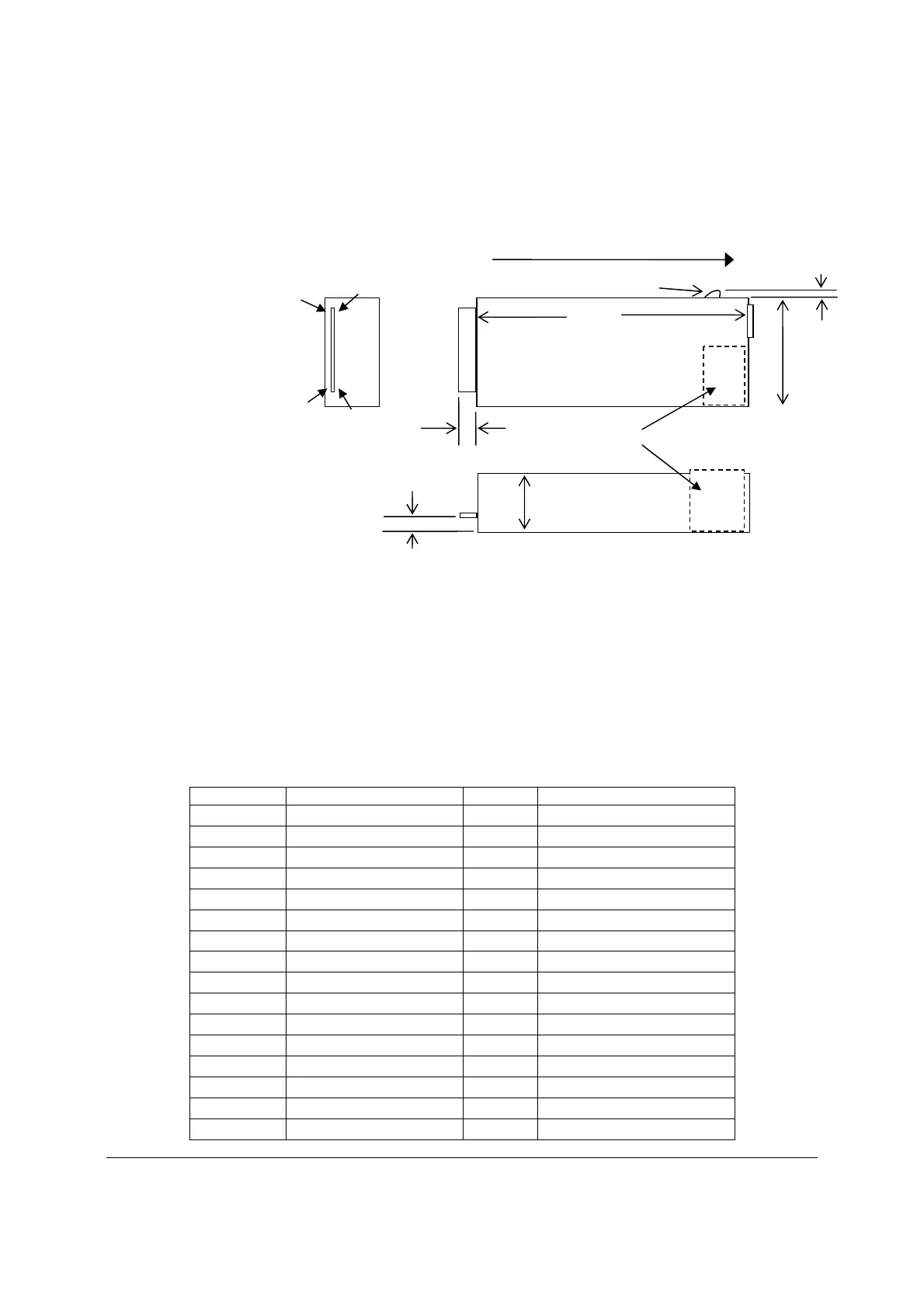

Figure 57. 750-W Power Supply Outline Drawing
13.3.1.1 DC Output Connector
The power supply uses a card edge output connection for power and signal that is compatible
with a 2x25 Power Card Edge connector (equivalent to 2x25 pin configuration of the FCI power
card connector 10035388-102LF).
Table 87. DC Output Connector
Pin Name Pin Name
A1 GND B1 GND
A2 GND B2 GND
A3 GND B3 GND
A4 GND B4 GND
A5 GND B5 GND
A6 GND B6 GND
A7 GND B7 GND
A8 GND B8 GND
A9 GND B9 GND
A10 +12V B10 +12V
A11 +12V B11 +12V
A12 +12V B12 +12V
A13 +12V B13 +12V
A14 +12V B14 +12V
A15 +12V B15 +12V
A16 +12V B16 +12V
74mm
FCI 2x25 card
edge connector
10035388-102
A25
A1
B25
B1
2mm
Retention Latch
Airflow direction
185mm
40mm fan
8.5mm
39mm
11mm
