Intel

Server Board S2600CP and Server System P4000CP TPS

Intel

Server System P4000CP Storage and Peripheral Drive Bays

Revision 1.1

Intel order number G26942-003

113

11.2 3.5” Hard Disk Drive Support

The Intel

Server System P4308CP4MHEN and P4308CP4MHGC support 8x3.5” drive

configuration. The drive bay can support either SATA or SAS hard disk drives. Mixing of drive

types within the hard drive bay is not supported. Hard disk drive type is dependent on the type

of host bus controller used, SATA only or SAS. Each 3.5” hard disk drive is mounted to a drive

tray, allowing for hot swap extraction and insertion. Drive trays have a latching mechanism that

is used to extract and insert drives from the chassis, and lock the tray in place.

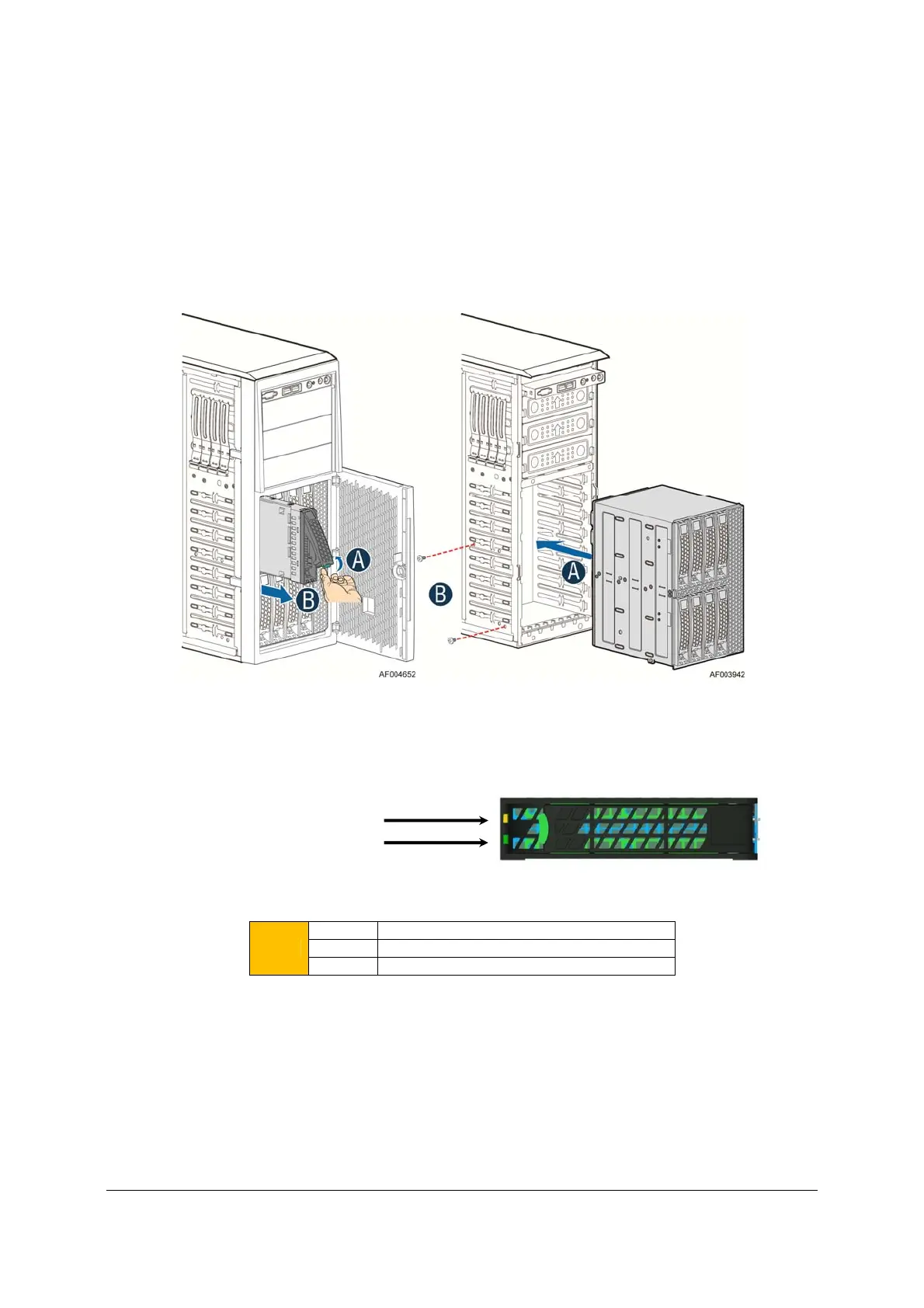

Figure 42. 3.5” Hard Disk Drive Cage

Light pipes integrated into the drive tray assembly direct light emitted from Amber drive status

and Green activity LEDs located next to each drive connector on the backplane, to the drive tray

faceplate, making them visible from the front of the system.

Table 61. 3.5” Hard Disk Drive Status LED States

Amber

Off No access and no fault

Solid On Hard Drive Fault has occurred

Blink RAID rebuild in progress (1 Hz), Identify (2 Hz)

Amber Status LED

Green Activity LED
