Server Board S2600CP and Server System P4000CP TPS Intel

Light Guided Diagnostics

Revision 1.1

Intel order number G26942-003

103

Callout Description

A System Status LED

B System ID LED

LSB 1 2 3 4 5 6 MSB POST Code Diagnostic LEDs

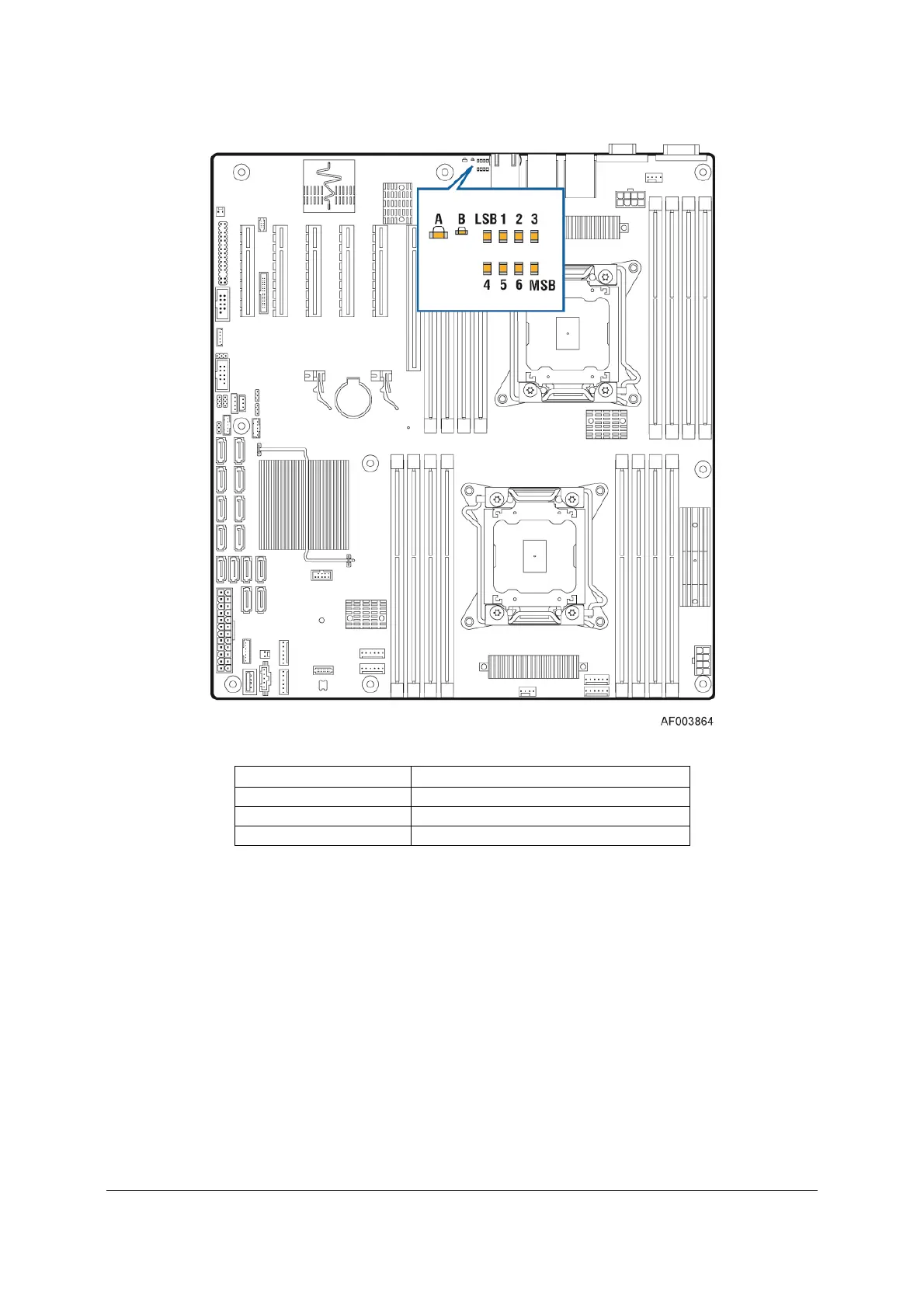

Figure 35. Location of System Status, System ID and POST Code Diagnostic LEDs

9.4.1 System ID LED

 You can illuminate the blue System ID LED using either of the following two mechanisms:

o By pressing the System ID Button on the system front control panel, the ID LED

displays a solid blue color until the button is pressed again.

o By issuing the appropriate hex IPMI “Chassis Identify” value, the ID LED will either

blink blue for 15 seconds and turn off or will blink indefinitely until the appropriate hex

IPMI Chassis Identify value is issue to turn it off.
