Server Board S2600CP and Server System P4000CP TPS Intel
®
Server System P4000CP Power System Options
Revision 1.1
Intel order number G26942-003
149
required voltages: +3.3VDC, +5VDC and 5V standby along with additional over current
protection circuit for the 12V rails.
This power distribution board is intended to be used in the Intel
®
Server Chassis P4000M with
various common redundant power supplies; 460W, 750W, 1200W, 1600W and DC input 750W.
13.4.1 Mechanical Overview

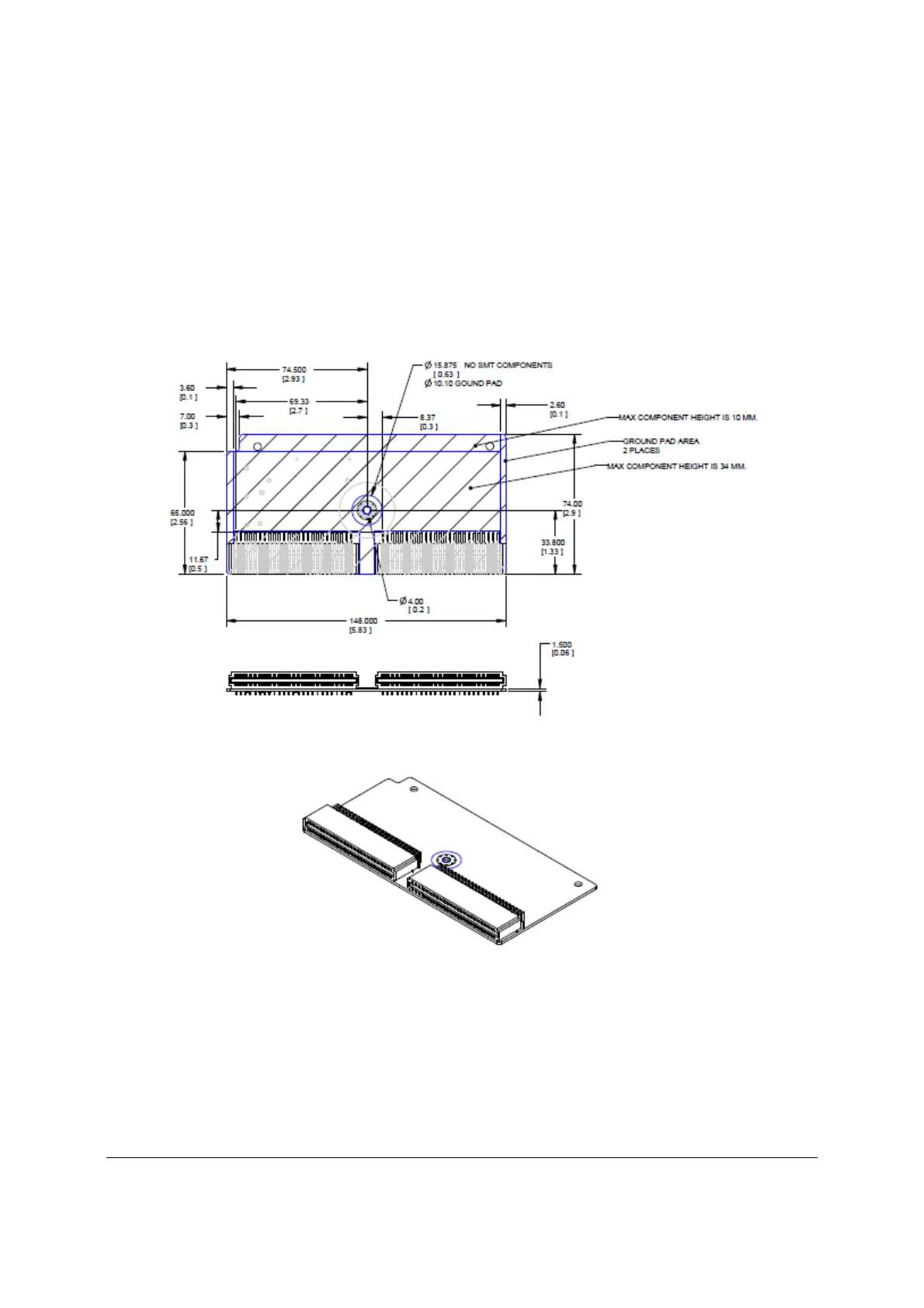

Figure 61. Outline Drawing
