Intel®
Server Board S2600CP Functional Architecture Intel
®
Server Board S2600CP and Server System P4000CP TPS
Revision 1.1
Intel order number G26942-003
26

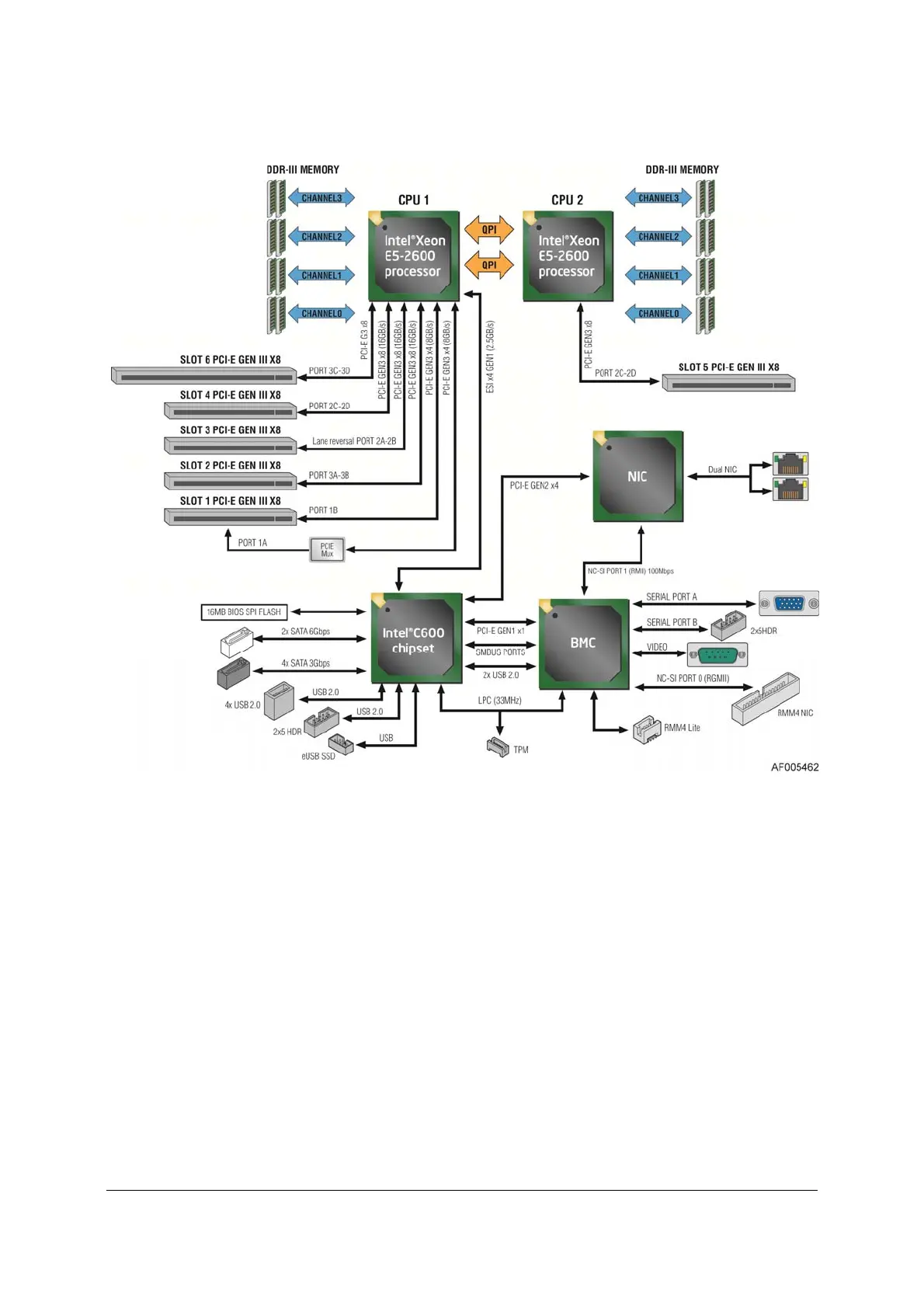

Figure 19. Intel
®
Server Board S2600CP2J Functional Block Diagram with Intel
®
C602J chipset
