Intel S2600CP Family User Manual

Intel® Server System P4000CP Overview Intel
®
Server Board S2600CP and Server System P4000CP TPS
Revision 1.1
Intel order number G26942-003
22
Feature Description
Internal I/O
Connectors/Headers
 One 2x5 pin connector providing front panel support for two USB ports
 One internal Type-A USB 2.0 port
 One internal USB port to support low profile eUSB SSD
 One DH-10 serial Port B connector
 One combined header consists of a 24-pin SSI-EEB compliant front panel header
and a 4-pin header for optional NIC3/4 LED
 One 1x7pin header for optional Intel
®
Local Control Panel support
Video Support Integrated Matrox* G200 2D Video Graphics controller
LAN  Four Gigabit network through Intel
®
I350 10/100/1000 integrated MAC and PHY
controller
Server Management  Onboard ServerEngines* LLC Pilot III* Controller
 Support for Intel
®
Remote Management Module 4 solutions
 Intel
®
Light-Guided Diagnostics on field replaceable units
 Support for Intel
®
System Management Software
 Support for Intel
®
Intelligent Power Node Manager (Need PMBus-compliant power
supply)
BIOS Flash Winbond* W25Q64BV
Form Factor SSI EEB (12”x13”)
Compatible Intel
®
Server
Chassis
Intel
®
Server Chassis P4000M chassis
3.2 Intel
®
Server System P4000CP Family View

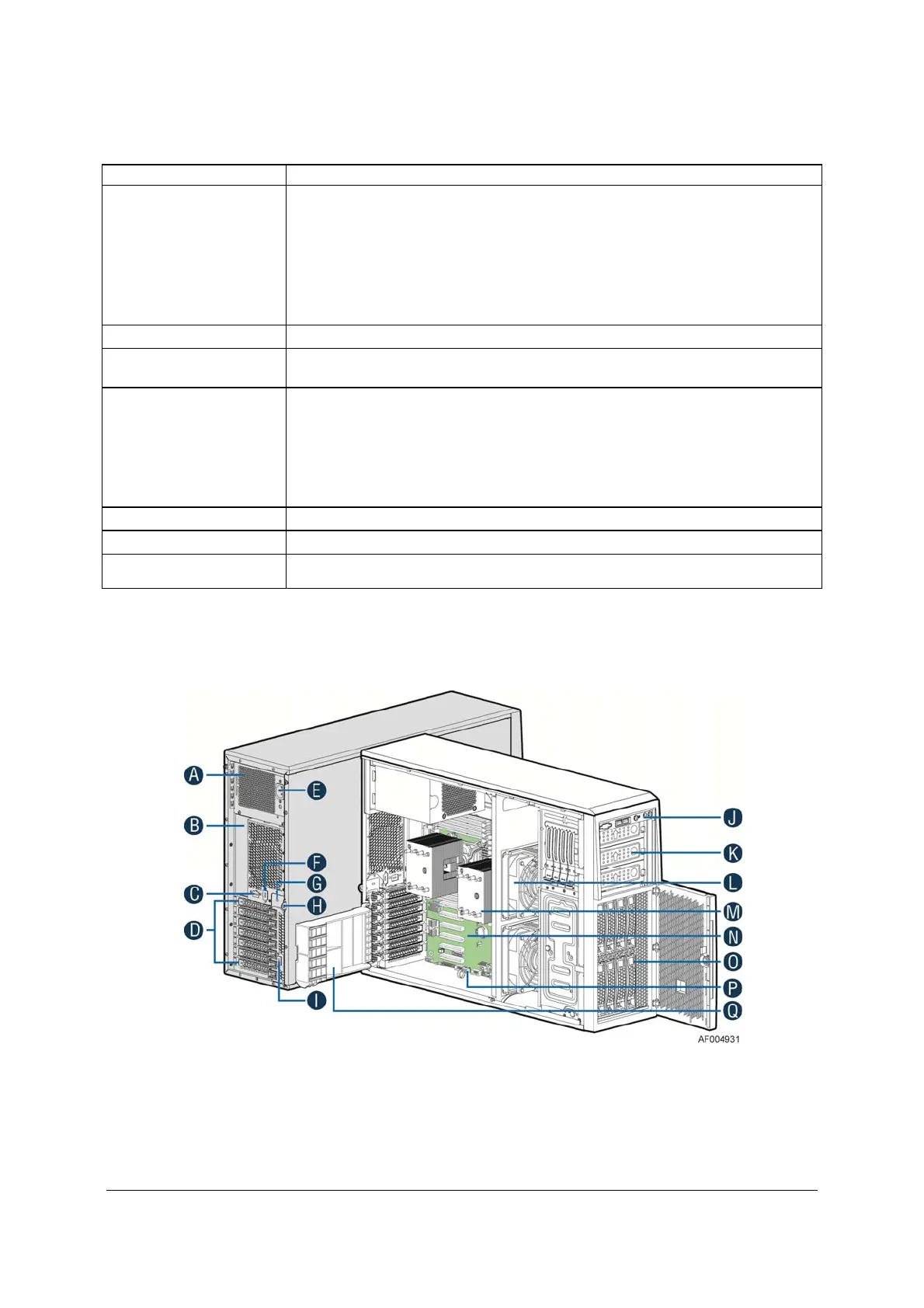

3.2.1 Intel
®
Server System P4308CP4MHEN View
A. 550-W Fixed Power supply
B. I/O Ports
C. Alternate RMM4 Knockout
D. PCI Add-in Board Slot Covers

Intel S2600CP Family Specifications

General

CPU Socket Type	LGA 2011
Max CPU Count	2
Chipset	Intel C602
Memory Slots	16
Processor Support	Intel Xeon E5-2600/E5-2600 v2 series
Memory Support	DDR3
Network Interface	Gigabit Ethernet
Storage Controller	6 x SATA 3Gb/s, 2 x SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10
Form Factor	SSI EEB
USB Ports	2 USB 3.0
