Server Board S2600CP and Server System P4000CP TPS Intel® Server Board S2600CP Functional Architecture
Revision 1.1
Intel order number G26942-003
25
4. Intel
®
Server Board S2600CP Functional Architecture
The architecture and design of the Intel
®
Server Board S2600CP is based on the Intel
®
Xeon
E5-2600 processor, the Intel
®
C602 or C602J chipset, the Intel
®
Ethernet Controller I350 GbE
controller chip, and the Server Engines* Pilot-III Server Management Controller. This chapter
provides a high-level description of the functionality associated with each chipset component
and the architectural blocks that make up the server boards.

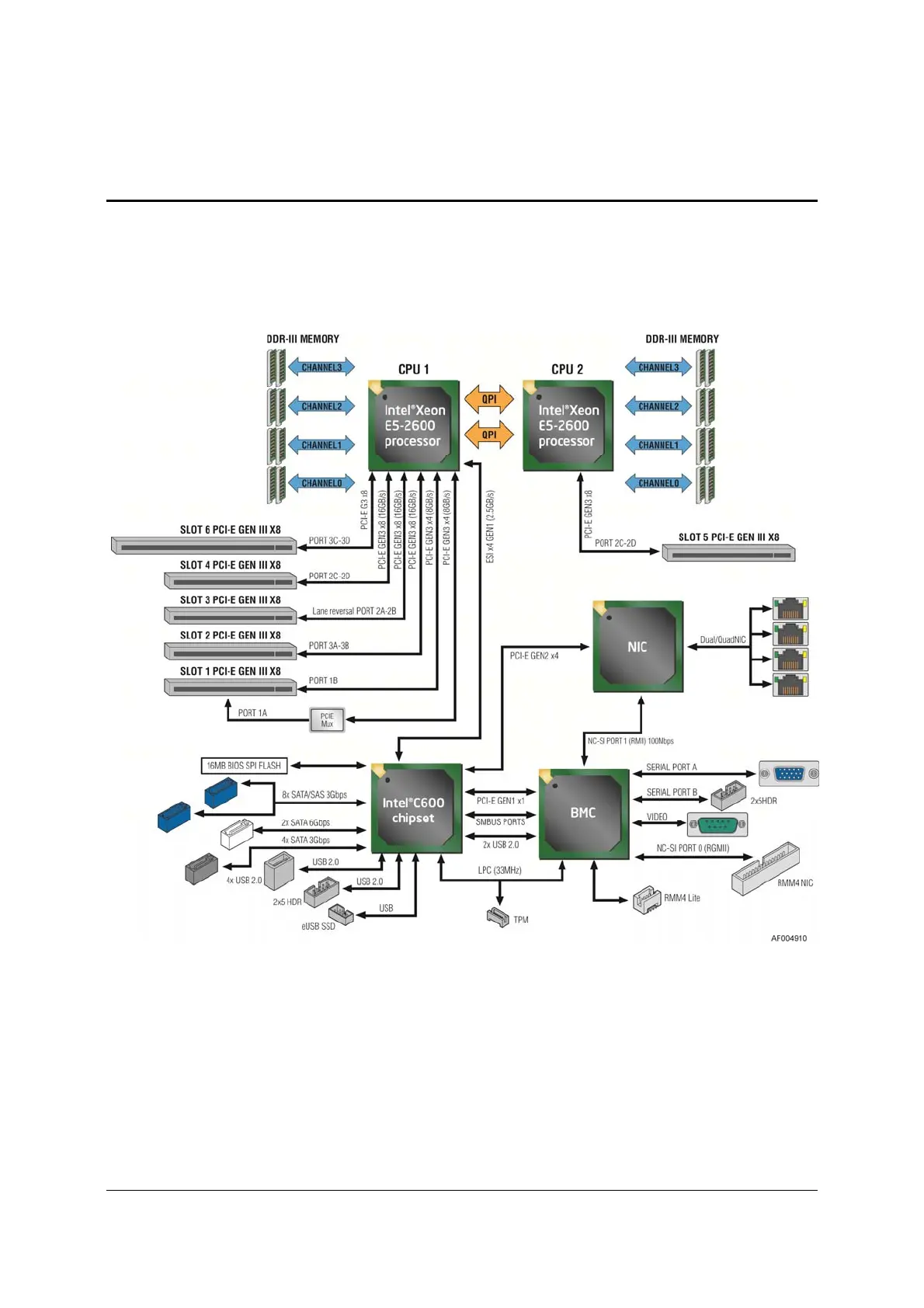

Figure 18. Intel
®
Server Board S2600CP2/S2600CP4 Functional Block Diagram with Intel
®
C602
chipset
