Design and Environmental Specifications Intel® Server Boards S3200SH/S3210SH TPS
Revision 1.8 109
Intel Order Number: E14960-009
8.5 Mechanical Specifications
The following figure shows the Intel
®
Server Board S3200SH mechanical drawing. An updated
version of this drawing will appear in a future revision of this document.

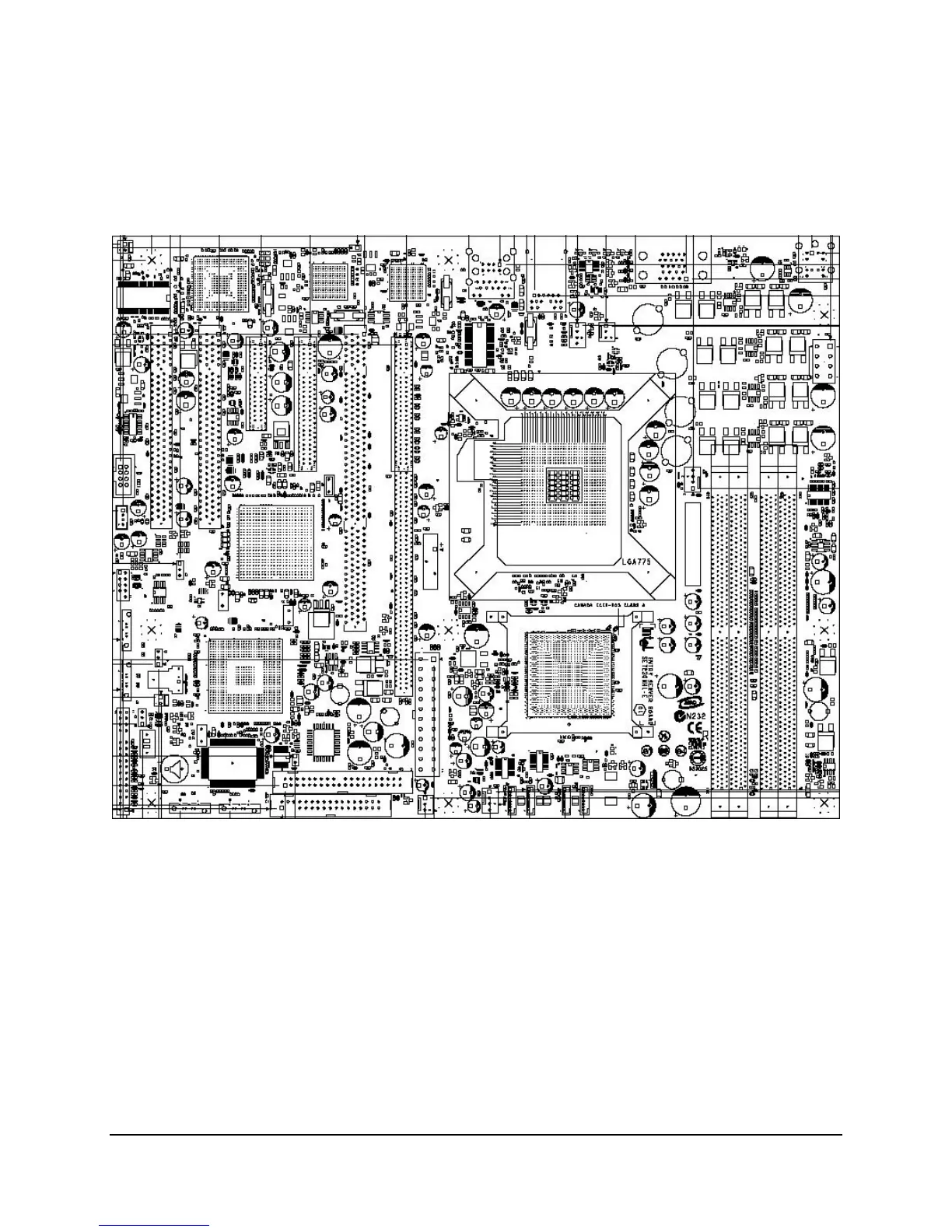

Figure 39. Intel
®
Server Board S3200SH Mechanical Drawing
