Intel® Server Boards S3200SH/S3210SH TPS Functional Architecture
Revision 1.8 27
Intel Order Number: E14960-009
Table 10. Memory Bank Labels and DIMM Population Order
Location DIMM Label Channel Population Order
J8J1 (DIMM_1A) A 1
J8J2 (DIMM_2A) A 3
J9J1 (DIMM_1B) B 2
J9J2 (DIMM_2B) B 4

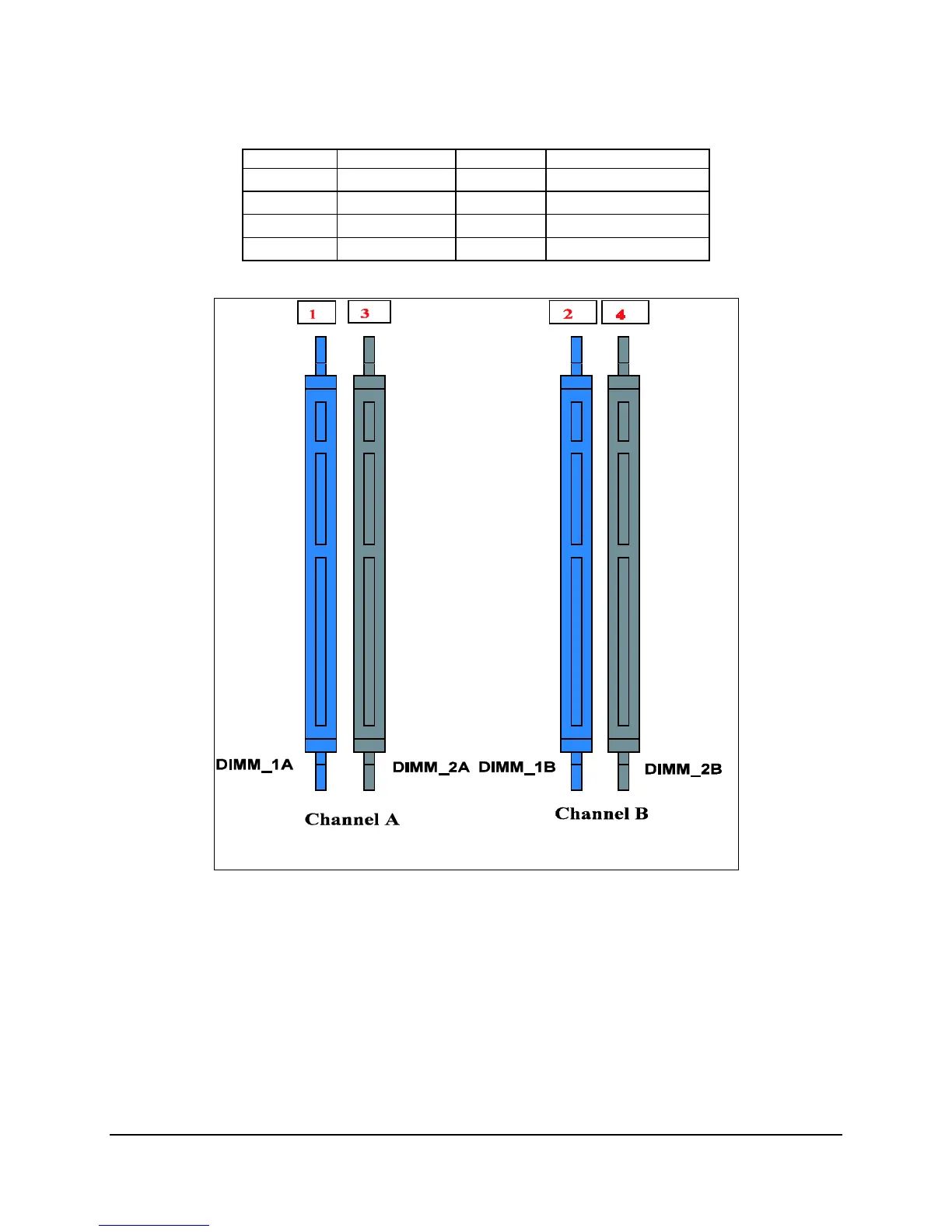

Figure 9. Memory Bank Label Definition
