Intel® Server Boards S3200SH/S3210SH TPS Functional Architecture
Revision 1.8 13
Intel Order Number: E14960-009
3. Functional Architecture
This chapter provides a high-level description of the functionality associated with the
architectural blocks that make up the Intel
®
Server Boards S3200SH/S3210SH.
DMI
SATA
PCIe* x8 (Slot 5)
PCIe* x16 (Slot 6)
PCI 32 (Slot 2)
SATA SATA
PCI 32 (Slot 1)
Controller
Link
S
MB
u
s
P
W
M
/
T
A
CH
PCI-E x8 (Slot 4)

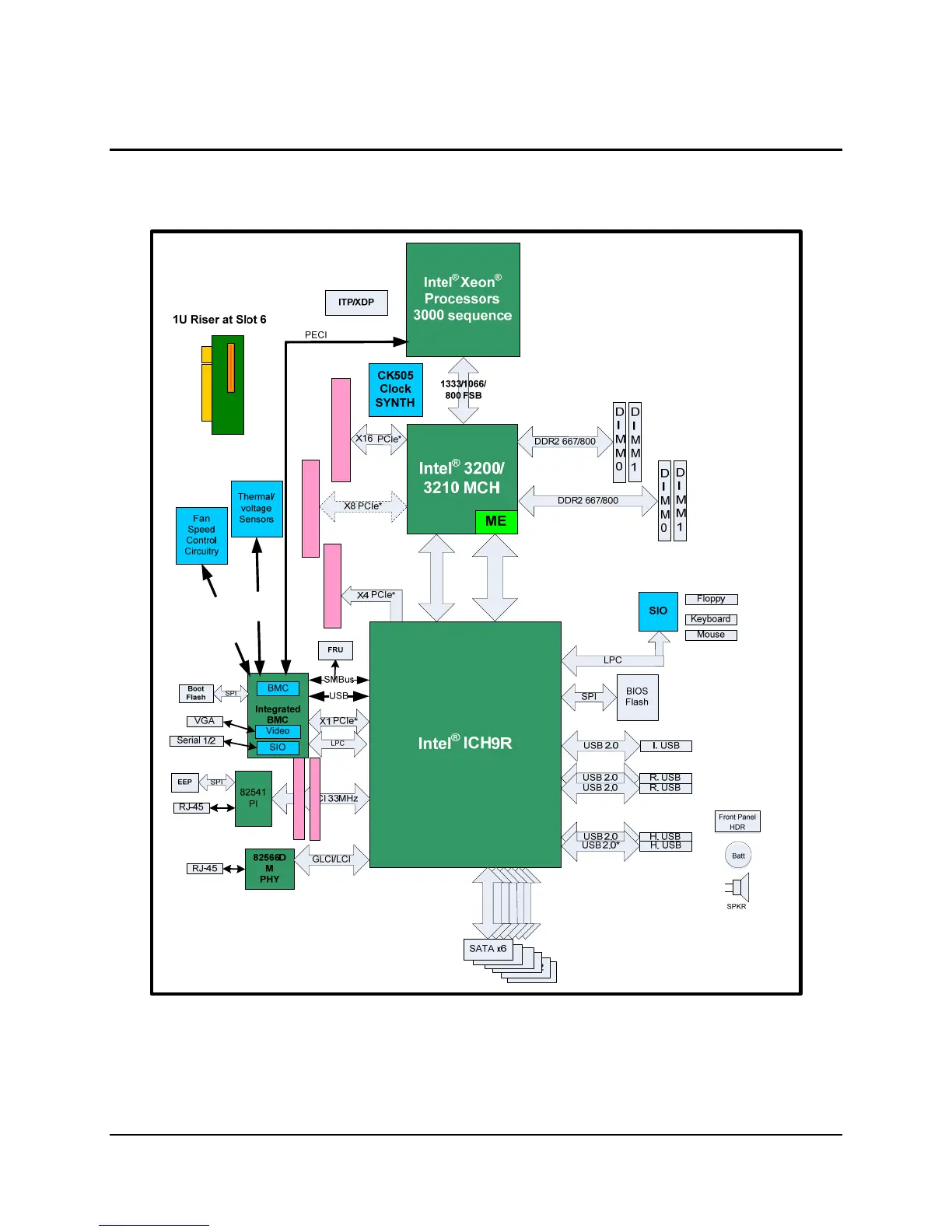

Figure 7. Intel
®
Server Boards S3200SH/S3210SH LC/L/V SKU–Block Diagram
