Intel® Server Boards S3200SH/S3210SH TPS Server Board Overview
Revision 1.8 7
Intel Order Number: E14960-009
AF002303
A B D H I JC
EE
DD
BB
FF
YZAA X W V U T PR O N
L
K
M
KK
S Q
GG
HH
II
JJ
GE F
CC

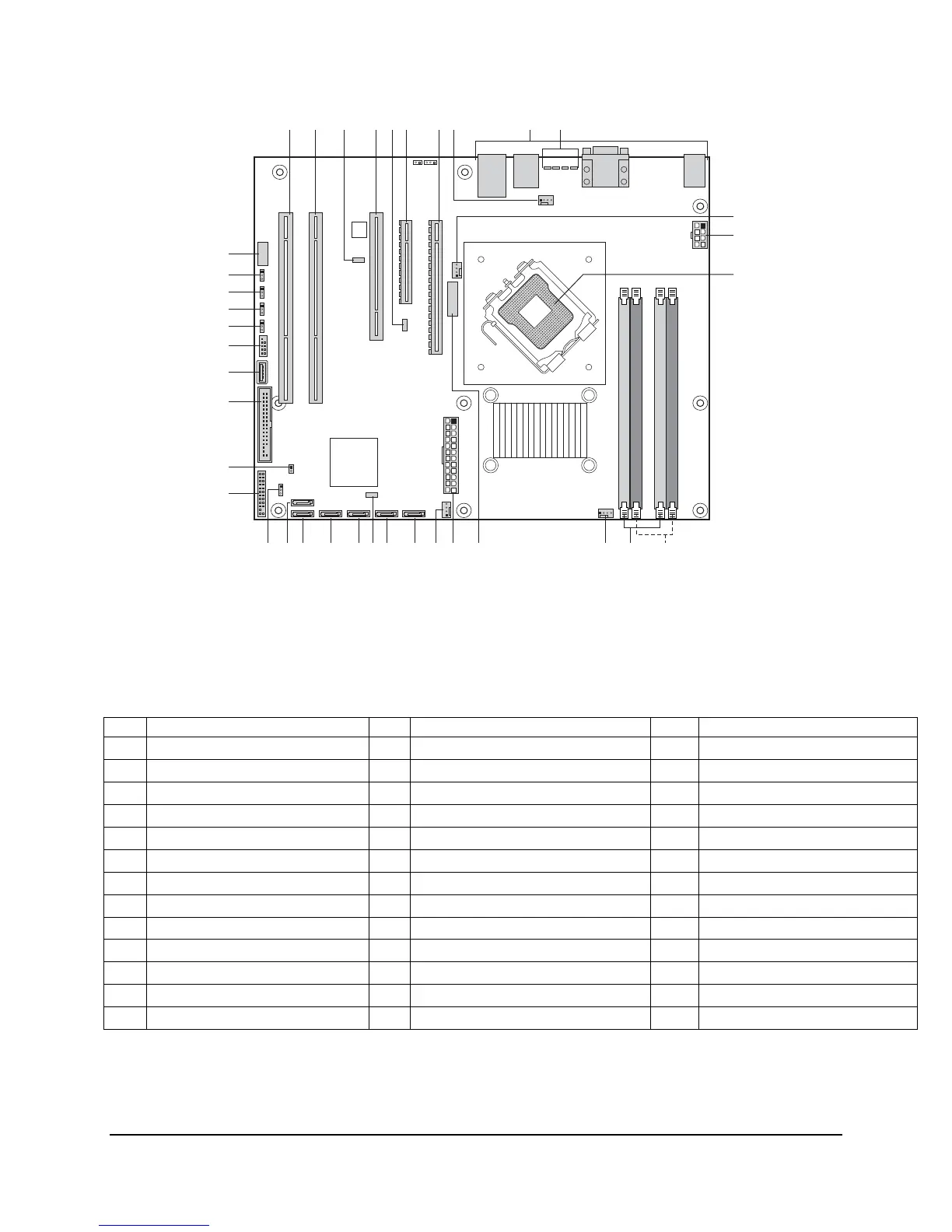

Figure 1. Intel
®
Server Board S3210SHLX Diagram
Table 1. Intel
®
Server Board S3210SHLX Board SKU Layout Reference
Ref Description Ref Description Ref Description
A PCI-X (64-bit/133 MHz) Slot 1 N Channel 2 DIMM Sockets AA Password Clear Jumper
B PCI-X (64-bit/133 MHz) Slot 2 O Channel 1 DIMM Sockets BB Front Panel Connector
C IPMB P Processor Fan 2 Connector CC Chassis Intrusion Jumper
D PCI 5 V (32-bit/33 MHz) Slot 3 Q Battery DD Floppy Connector
E HSBP R Main Power Connector EE Internal USB
F PCI Express* x8 S System Fan 2 Connector FF External USB
G PCI Express* x16 T SATA 0 GG CMOS Clear Jumper
H System Fan 1 Connector U SATA 1 HH BMC Force Update Jumper
I Back Panel Connectors V SGPIO II BIOS Recovery Jumper
J Diagnostic LEDs W SATA 2 JJ BMC Boot Block WP Jumper
K Processor Fan 1 Connector X SATA 3 KK Serial Port Connector
L 2X4 Aux Power Connector Y SATA 4
M Processor Socket Z SATA 5
