Server Board Overview Intel® Server Boards S3200SH/S3210SH TPS
8 Revision 1.8
Intel Order Number: E14960-009

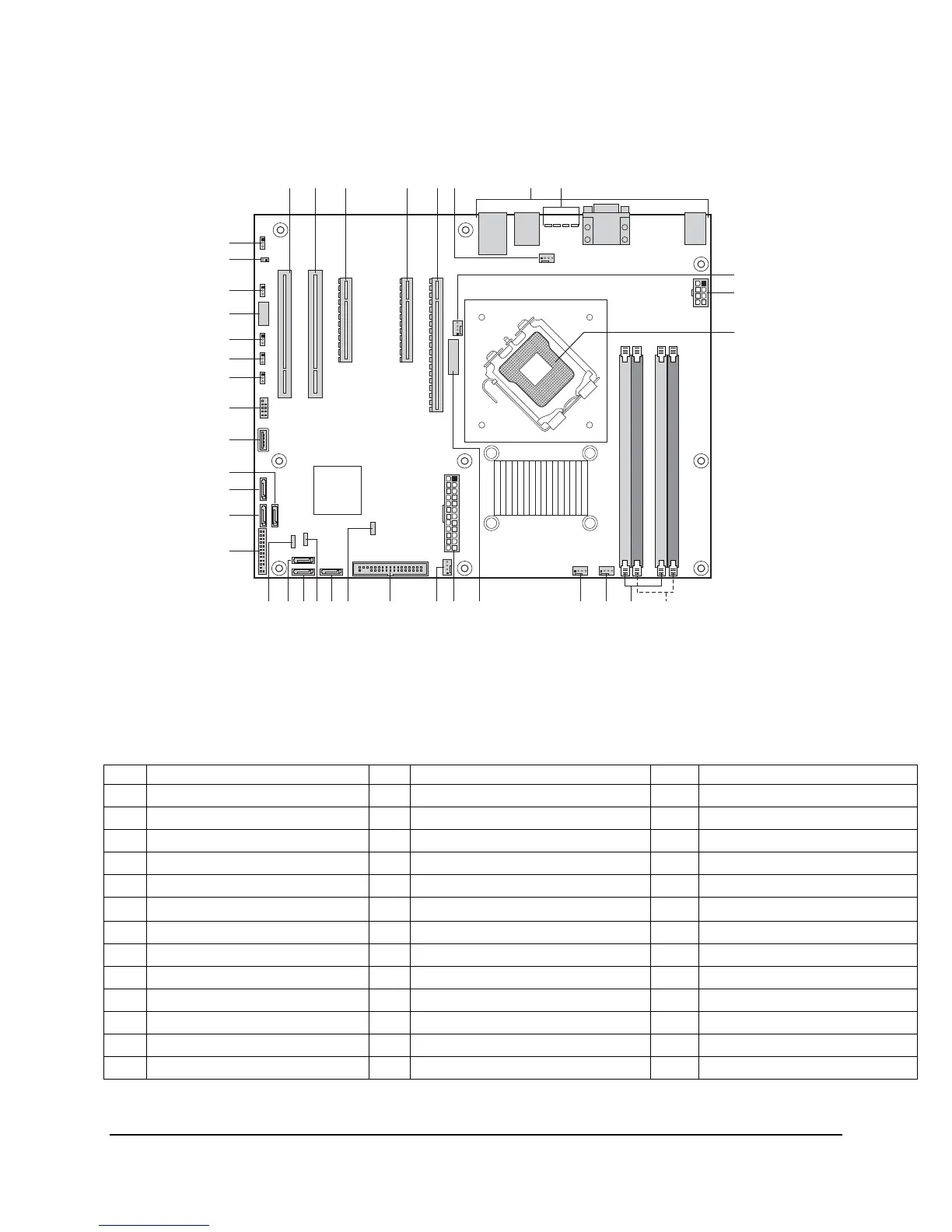

The following figure shows the board layout of the LC board SKU. A letter identifies each
connector and major component (shown in Table 2).
AF002304
A B F G H
DD
Z
EE
WX U RS NOQ P M L
J
I
K
EDC
BB
AA
CC
Y V T
II
FF
JJ
GG
HH
LL
KK
Figure 2. Intel
®
Server Board S3210SHLC Diagram
Table 2. Intel
®
Server Board S3210SHLC Layout Reference
Ref Description Ref Description Ref Description
A PCI (32-bit/33 MHz) Slot 1 N System Fan4 Connector AA SATA 4
B PCI (32-bit/33 MHz) Slot 2 O System Fan3 Connector BB SATA 5
C PCI Express* x8 (x8 lane) P Battery CC SATA 3
D PCI Express* x8 (x4 lane) Q Main Power Connector DD Internal USB
E PCI Express* x16 R System Fan2 EE External USB
F System Fan 1 Connector S Floppy Connector FF CMOS Clear Jumper
G Back Panel Connectors T SGPIO GG Password Clear Jumper
H Diagnostic LEDs U SATA 0 HH Recovery Mode Jumper
I Processor Fan 1 Connector V HSBP II Serial Port
J 2X4 Aux Power Connector W SATA1 JJ BMC Boot Block WP Jumper
K Processor Socket X SATA2 KK Chassis Intrusion
L Channel 2 DIMM Sockets Y IPMB LL BMC Force Update Jumper
M Channel 1 DIMM Sockets Z Front Panel Connector
