Intel® Server Boards S3200SH/S3210SH TPS Server Board Overview
Revision 1.8 9
Intel Order Number: E14960-009

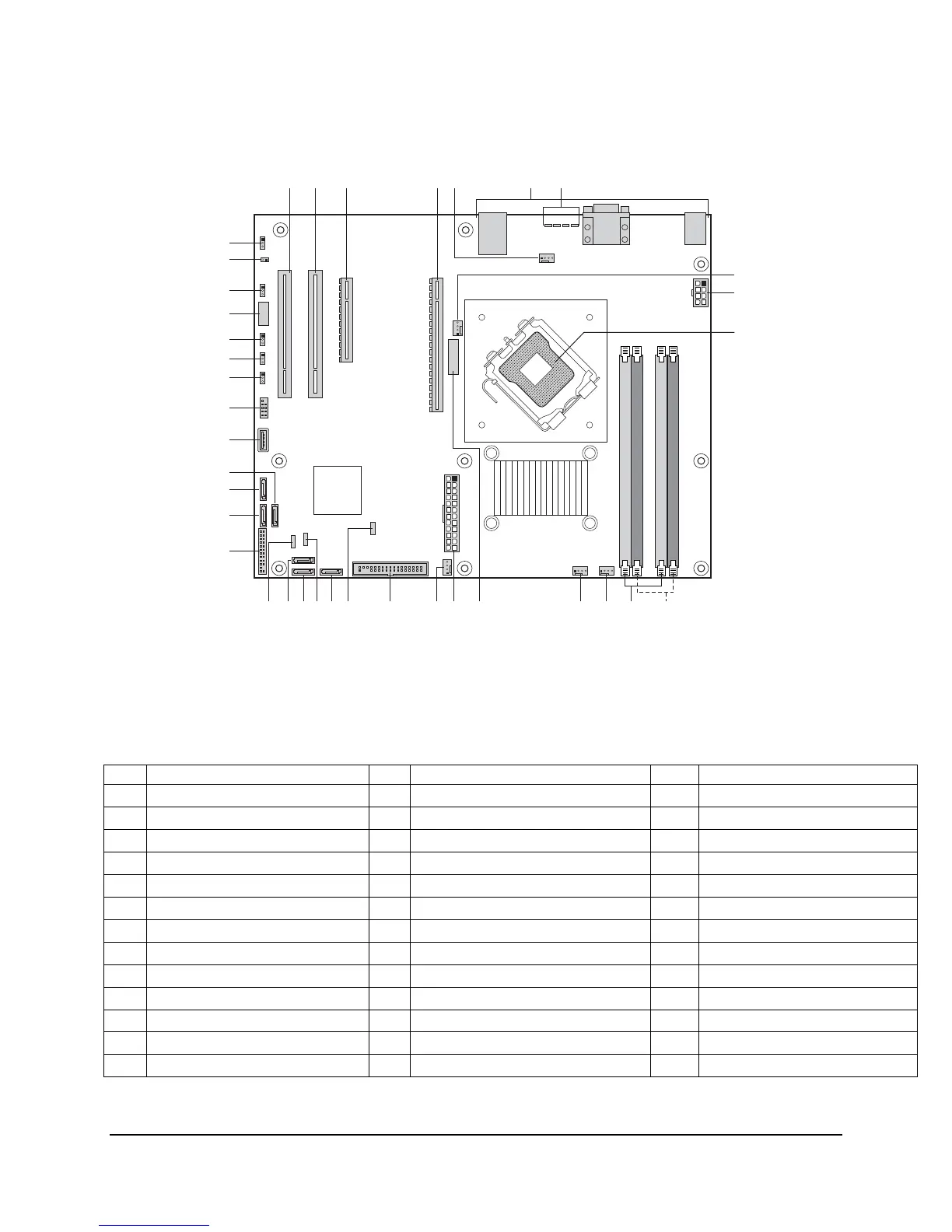

The following figure shows the board layout of the Intel
®
Server Boards S3200SHL/S3200SHV.
A letter identifies each connector and major component (shown in Table 3).
S
HH
EE
II
FF
GG
KK
JJ
AF002310
A B E F G
CC
Y
DD
VW T QR MNP O L K
I
H
J
D
AA
Z
BB
X U
C
Figure 3. Intel
®
Server Board S3200SH-L/S3200SH-V SKU Diagram
Table3. Intel
®
Server Boards S3200SH-L/S3200SH-V Component Layout Reference
Ref Description Ref Description Ref Description
A PCI (32-bit/33 MHz) Slot 1 M System Fan4 Connector Y Front Panel Header
B PCI (32-bit/33 MHz) Slot 2 N System Fan3 Connector Z SATA 4
C PCI Express* x8 (x4 lane) O Battery AA SATA 5
D PCI Express* x16 (x8 lane) P Main Power Connector BB SATA 3
E System Fan 1 Connector Q System Fan2 CC Internal USB
F Back Panel Connectors R Floppy Connector DD External USB
G Diagnostic LEDs S SGPIO EE CMOS Clear Jumper
H Processor Fan 1 Connector T SATA 0 FF Password Clear Jumper
I 2X4 Aux Power Connector U HSBP GG Recovery Mode Jumper
J Processor Socket V SATA1 HH Serial Port
K Channel 2 DIMM Sockets W SATA2 II BMC Boot Block WP Jumper
L Channel 1 DIMM Sockets X IPMB JJ Chassis Intrusion
KK BMC Force Update Jumper
