Intermec EasyCoder 501 E User Manual

Intermec EasyCoder 501 E – Installation & Operation Ed. 1 43
Chapter 5 Media Load

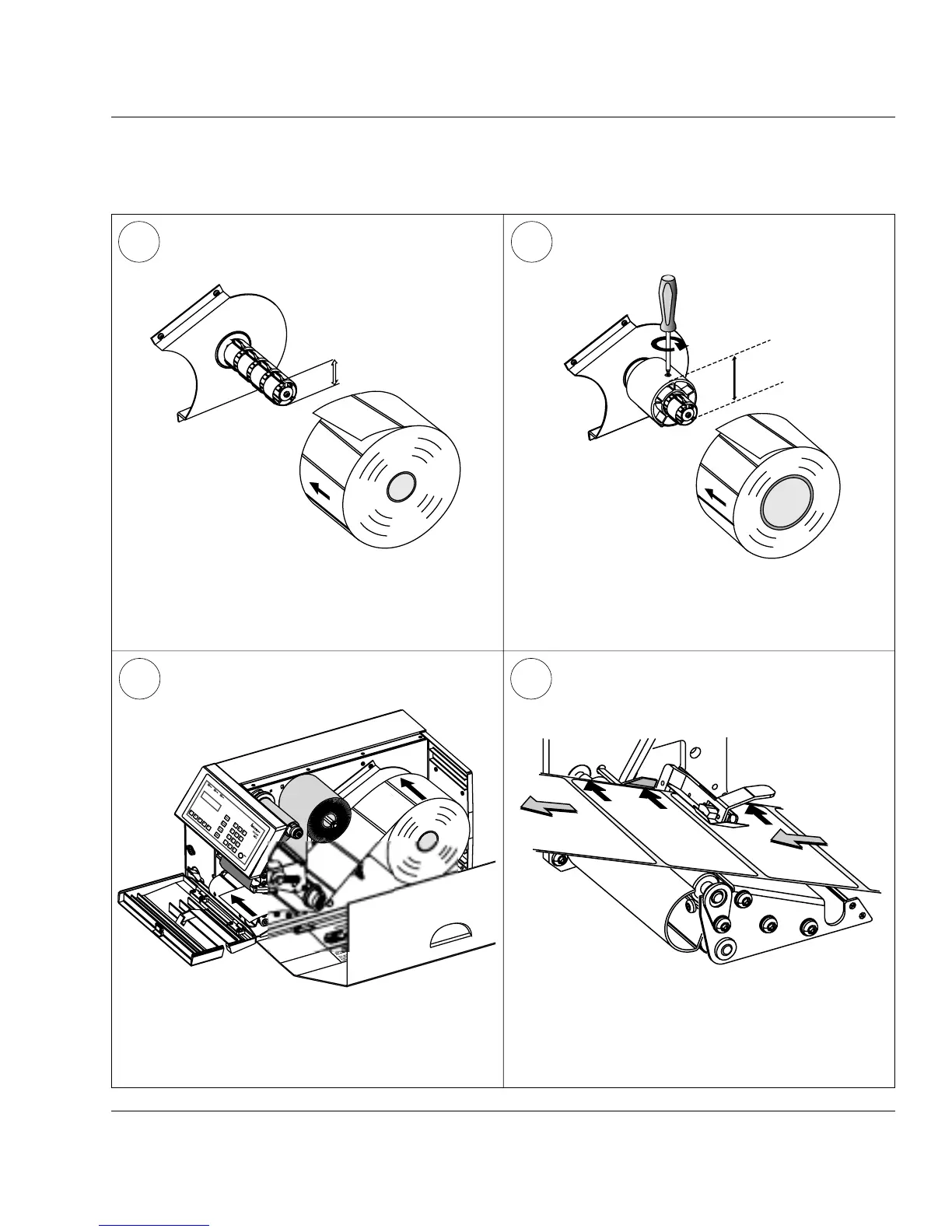

Fit a new roll of media on the supply hub and
push the roll inwards as far as it will go.
38-40 mm
(1.5 in)
Internal Batch Takeup, cont.
In case of a media roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
76 mm
(3 in)
7b
Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
89
7a
Pull out the media and route it under the slack
absorber and through the print unit as illus-
trated. Then push the roll inward on the hub.
L
o
L
