Intermec EasyCoder 501 E User Manual

Intermec EasyCoder 501 E – Installation & Operation Ed. 144
Chapter 5 Media Load
Internal Batch Takeup, cont.
Pull out approximately 40 cm (15 inches) of
media.
Route the media around the guide plate and
back under the print unit to the takeup hub.
10
11
40 cm/15 in
Wind up some of the media on the takeup hub
and secure it with the clip.
12 13
1.
2.

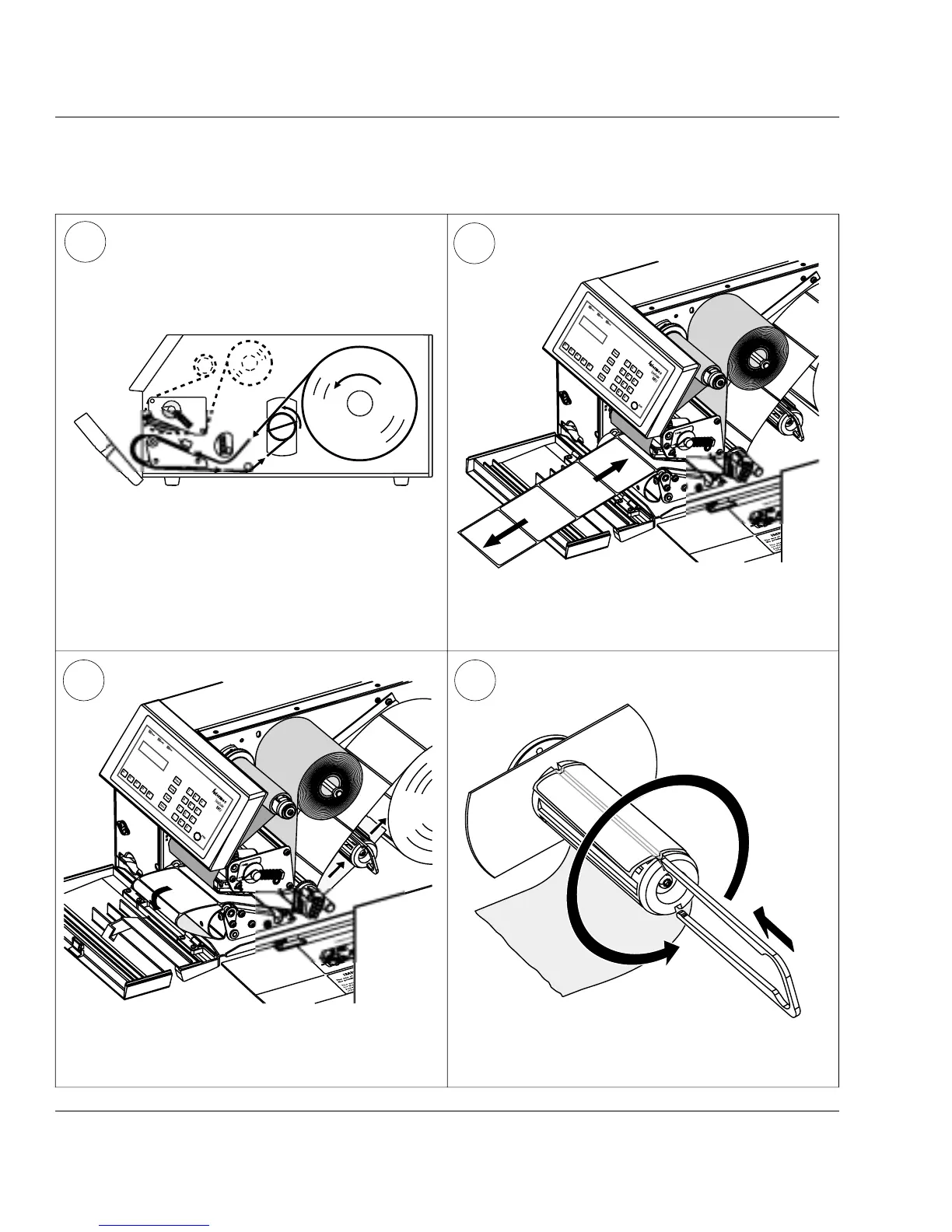

This diagram shows the path of the media.
