Chapter 9 — Maintenance

92 EasyCoder PF4i User’s Guide (IPL Version)

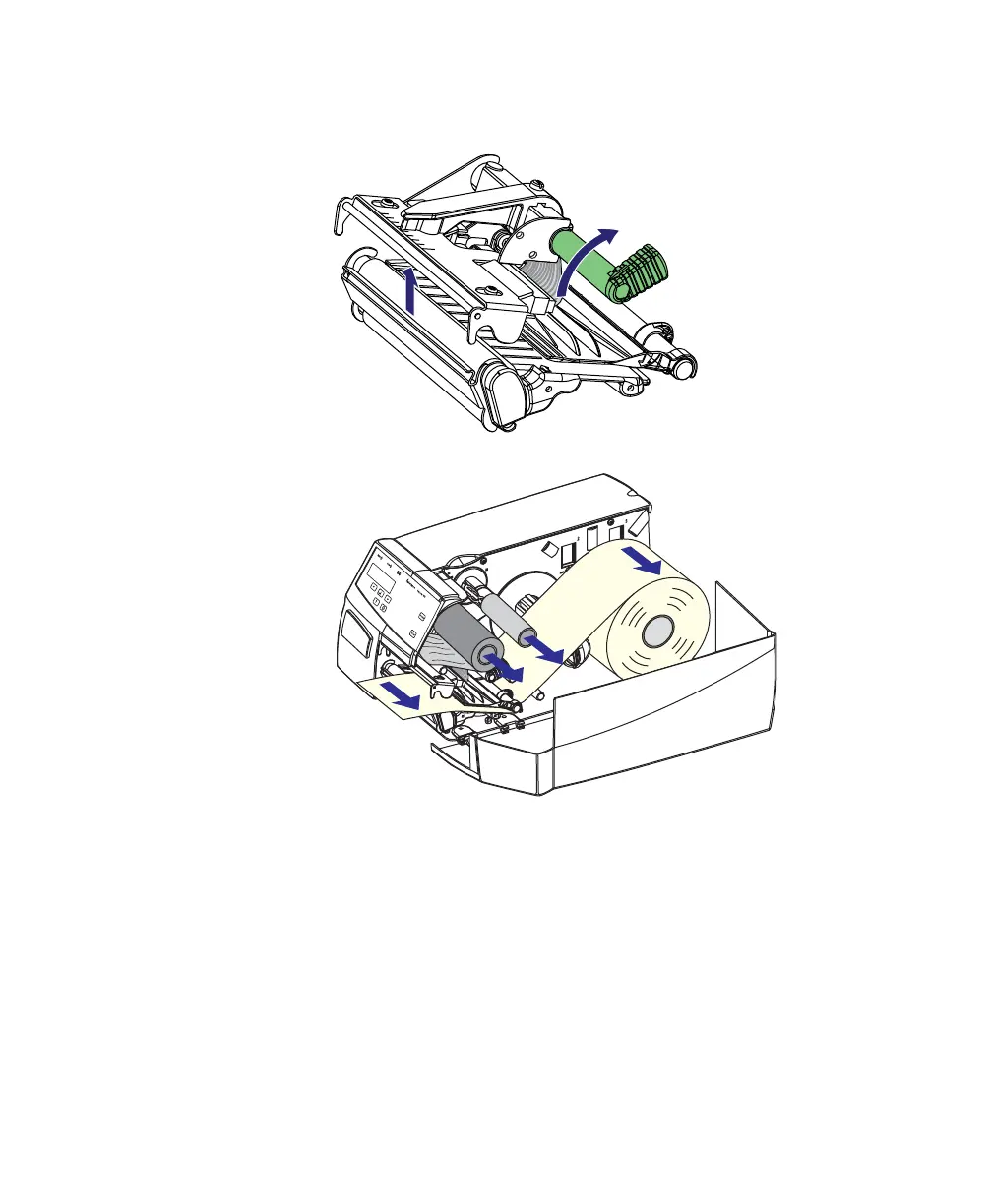

2 Turn the printhead lift lever counter-clockwise to raise the

printhead.

3 Remove any media and transfer ribbon.
