Chapter 9 — Maintenance
EasyCoder PF4i User’s Guide (IPL Version) 93

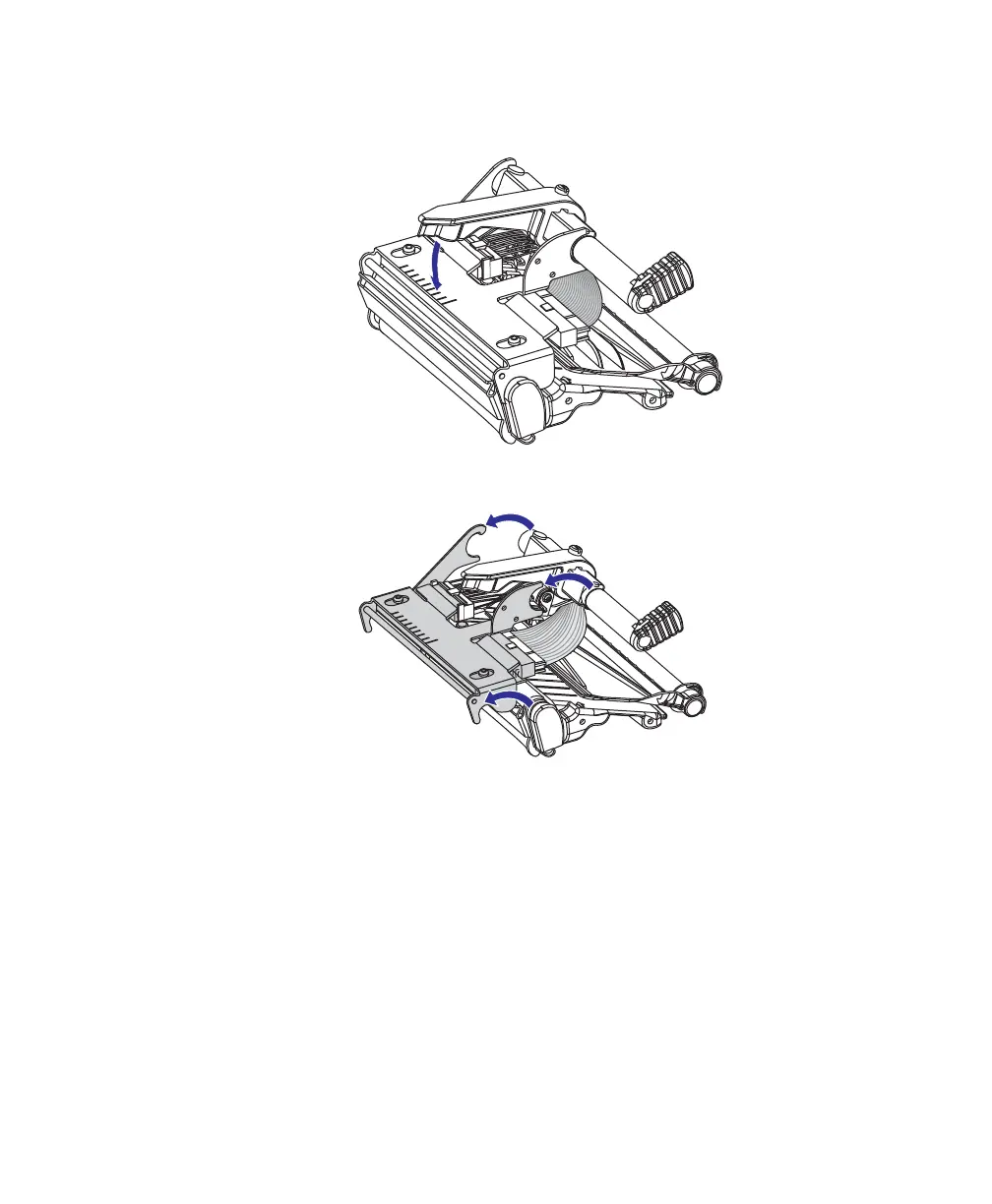

4 Pull the printhead bracket away from the magnet in the
pressure arm.
5 Disconnect the hooked printhead bracket fingers from the
shaft and pull out the printhead as far as the cables allow.
