Chapter 9 — Maintenance

94 EasyCoder PF4i User’s Guide (IPL Version)

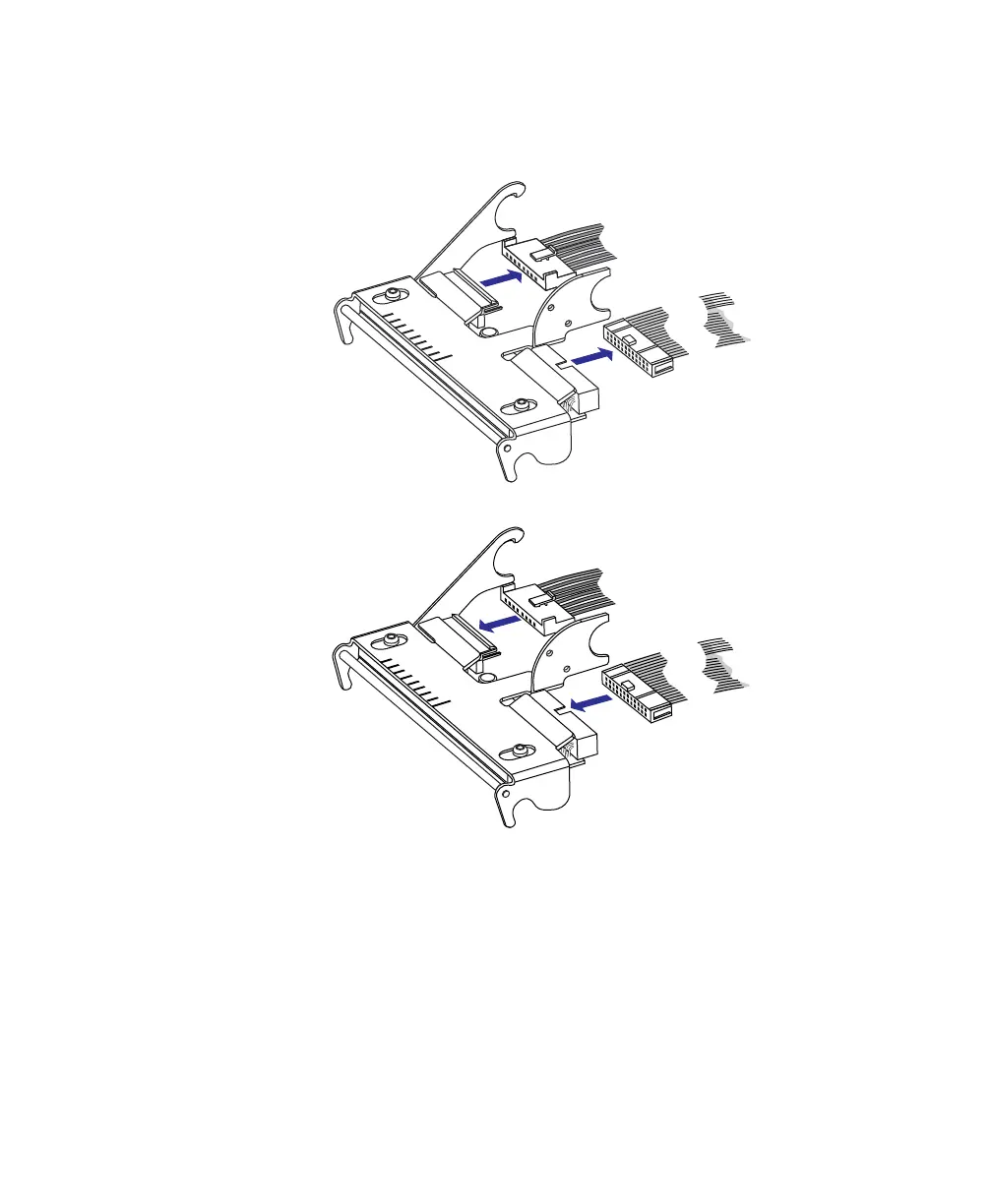

6 Disconnect the cables from the printhead. Note the snap-lock

on the inner connector. Pull on the connectors, not on the

cables.

7 Connect the two cables to the replacement printhead.
