Chapter 3 — Media Load

EasyCoder PF4i User’s Guide (IPL Version) 19

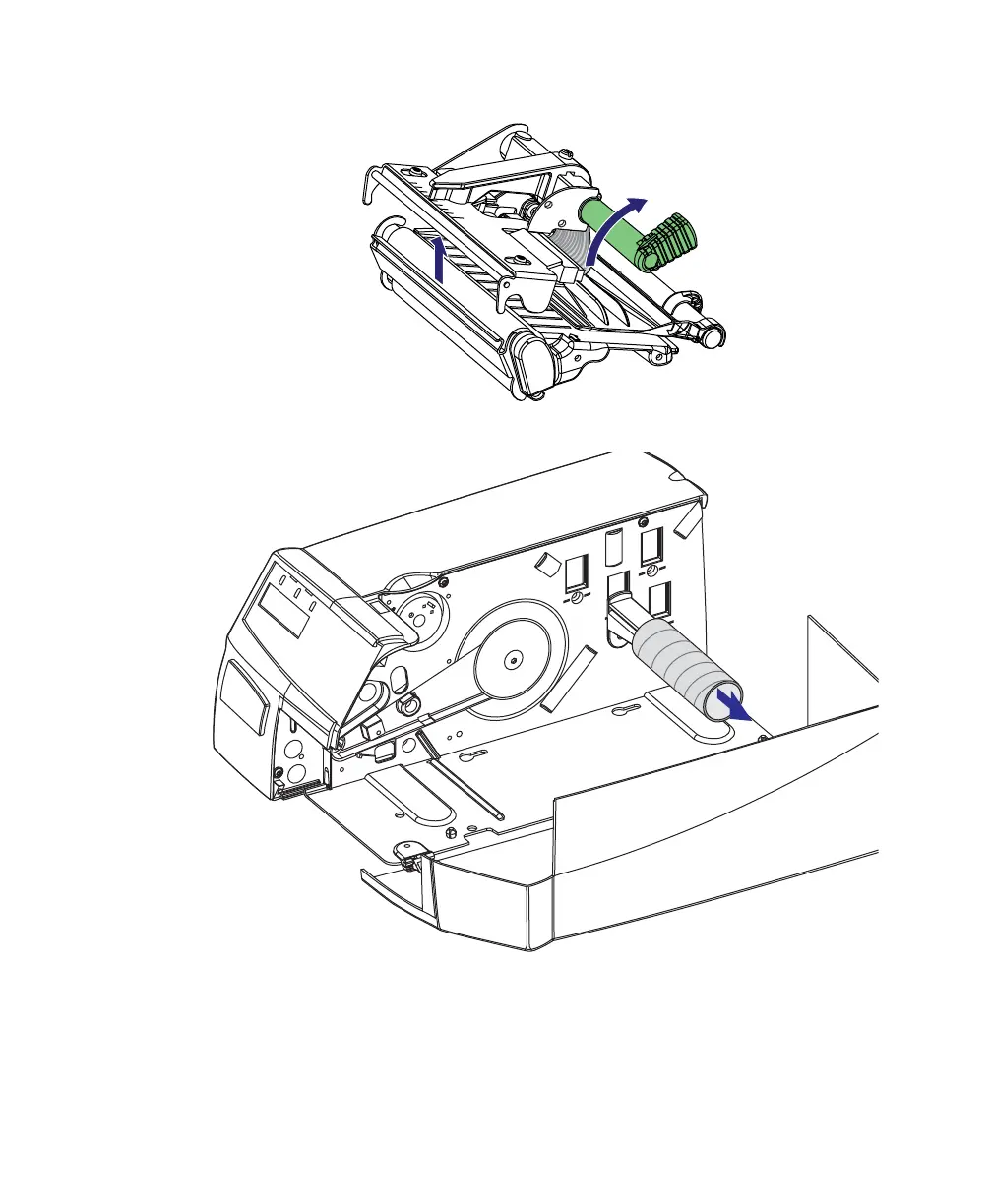

2 Turn the printhead lift lever clockwise to raise the printhead.

3 Remove any empty core from the media supply hub.
