Chapter 3 — Media Load
20 EasyCoder PF4i User’s Guide (IPL Version)

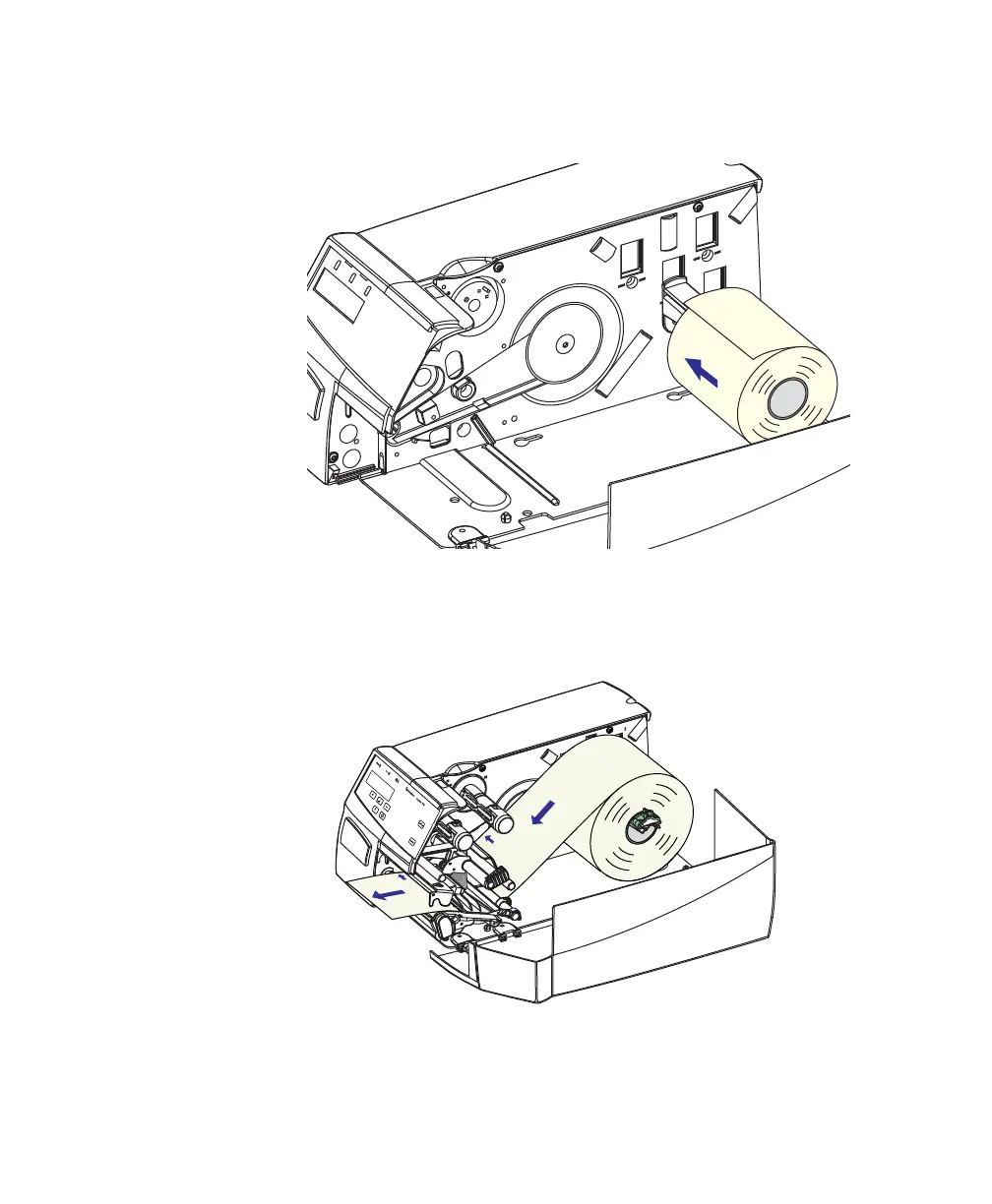

4 Fit a new roll of media onto the media supply hub and adjust
the edge guide so that the roll becomes flush with the center
section.
5 Route the media underneath the slack absorber and forward
towards the print mechanism. The slack absorber can be
rotated for better access and then snap-locked in open
position.Route the media through the print unit and push it
inwards as far as it will go.
To Next Page
