Intermec EasyCoder PF4i - Connections

Chapter 3 — Media Load
EasyCoder PF4i User’s Guide (IPL Version) 29

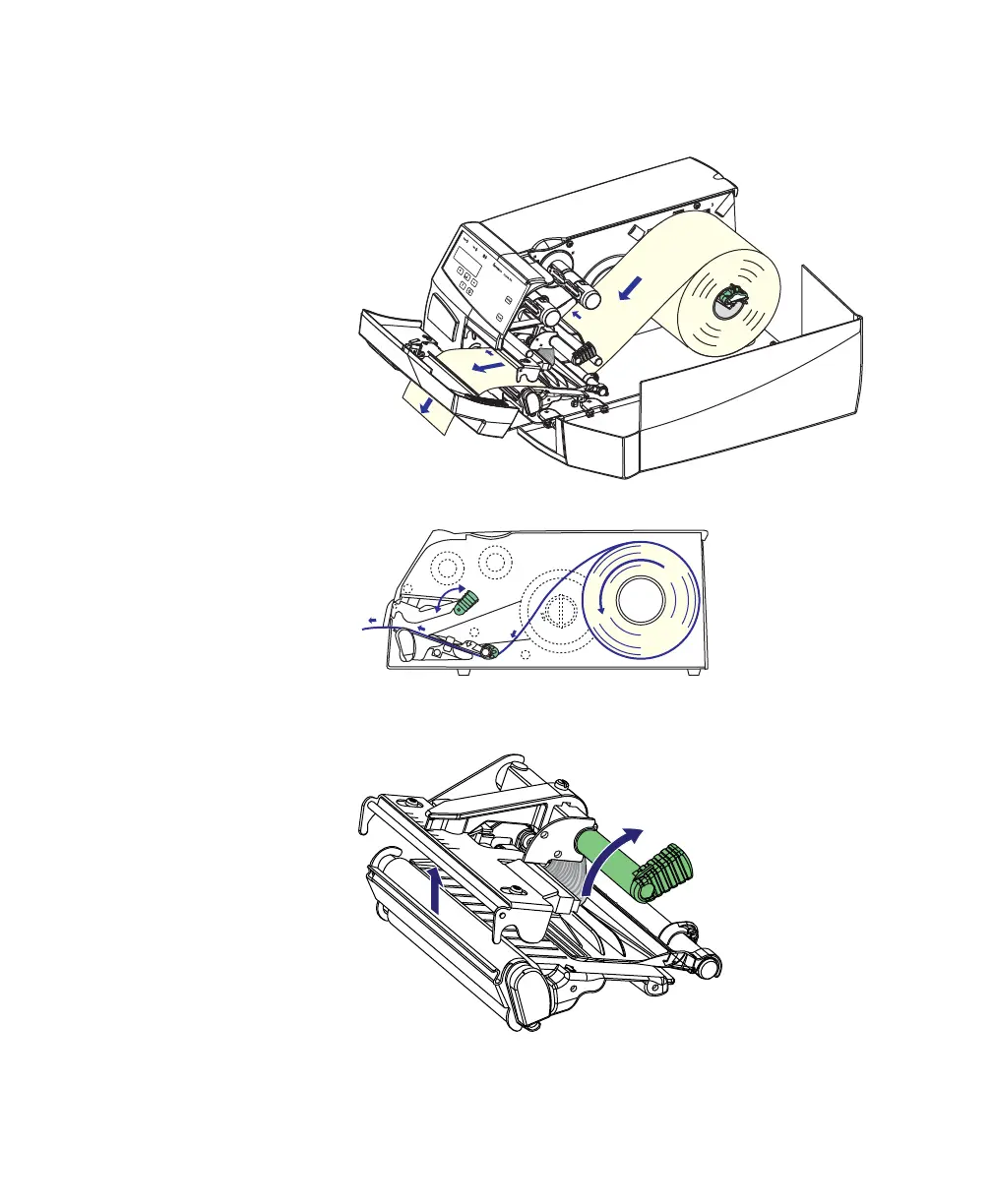

5 Route the media through the print mechanism and cutter.
Then push it towards the center section as far as it will go.
6 This diagram shows the media path.
7 Turn the printhead lift lever counterclockwise to engage the
printhead.
