Chapter 3 — Media Load

30 EasyCoder PF4i User’s Guide (IPL Version)

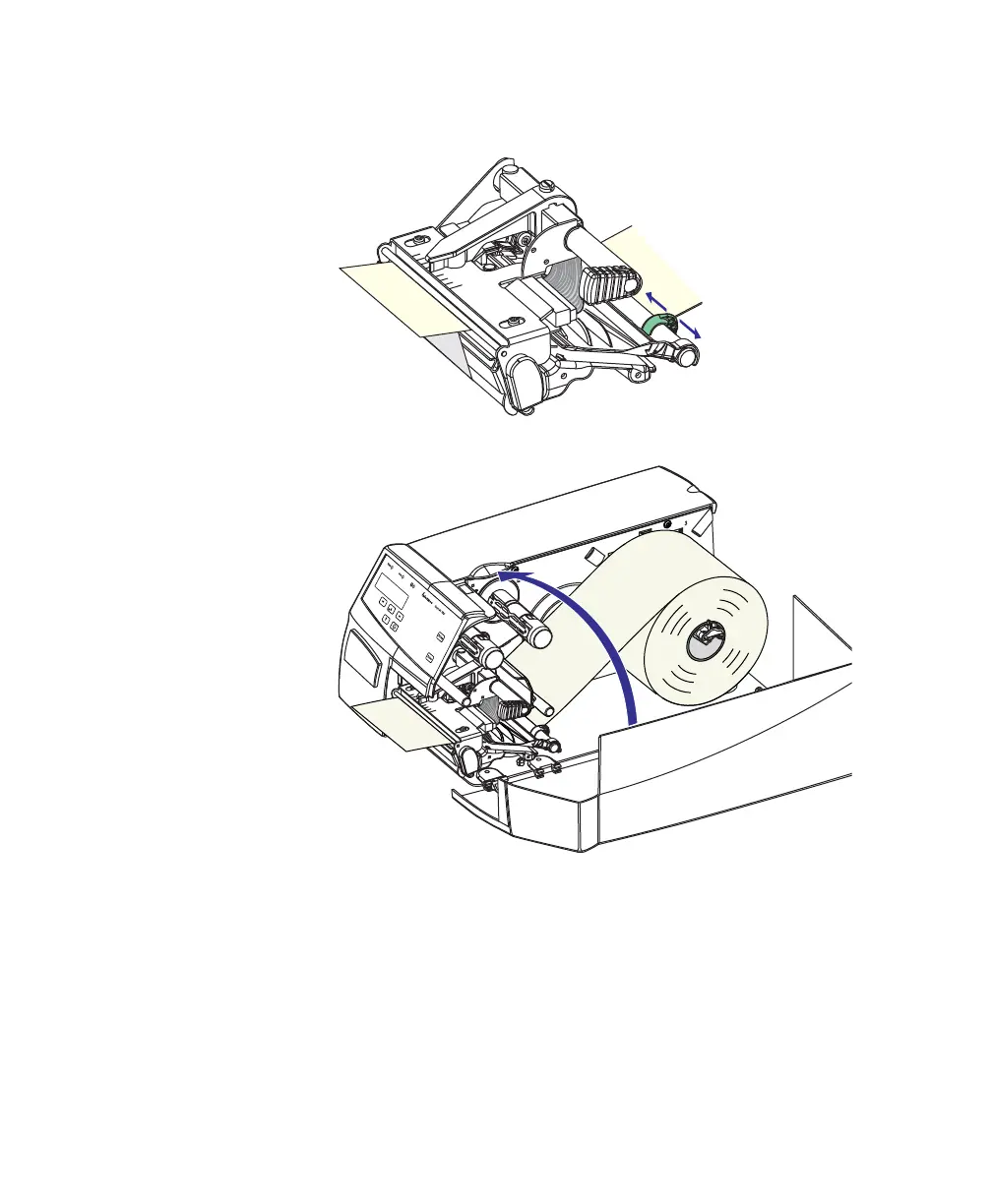

8 Adjust the position of the green edge guide so the media is

guided with a minimum of play.

9 Close the side door.
