Intermec EasyCoder PF4i - Starting Up

Chapter 3 — Media Load
36 EasyCoder PF4i User’s Guide (IPL Version)

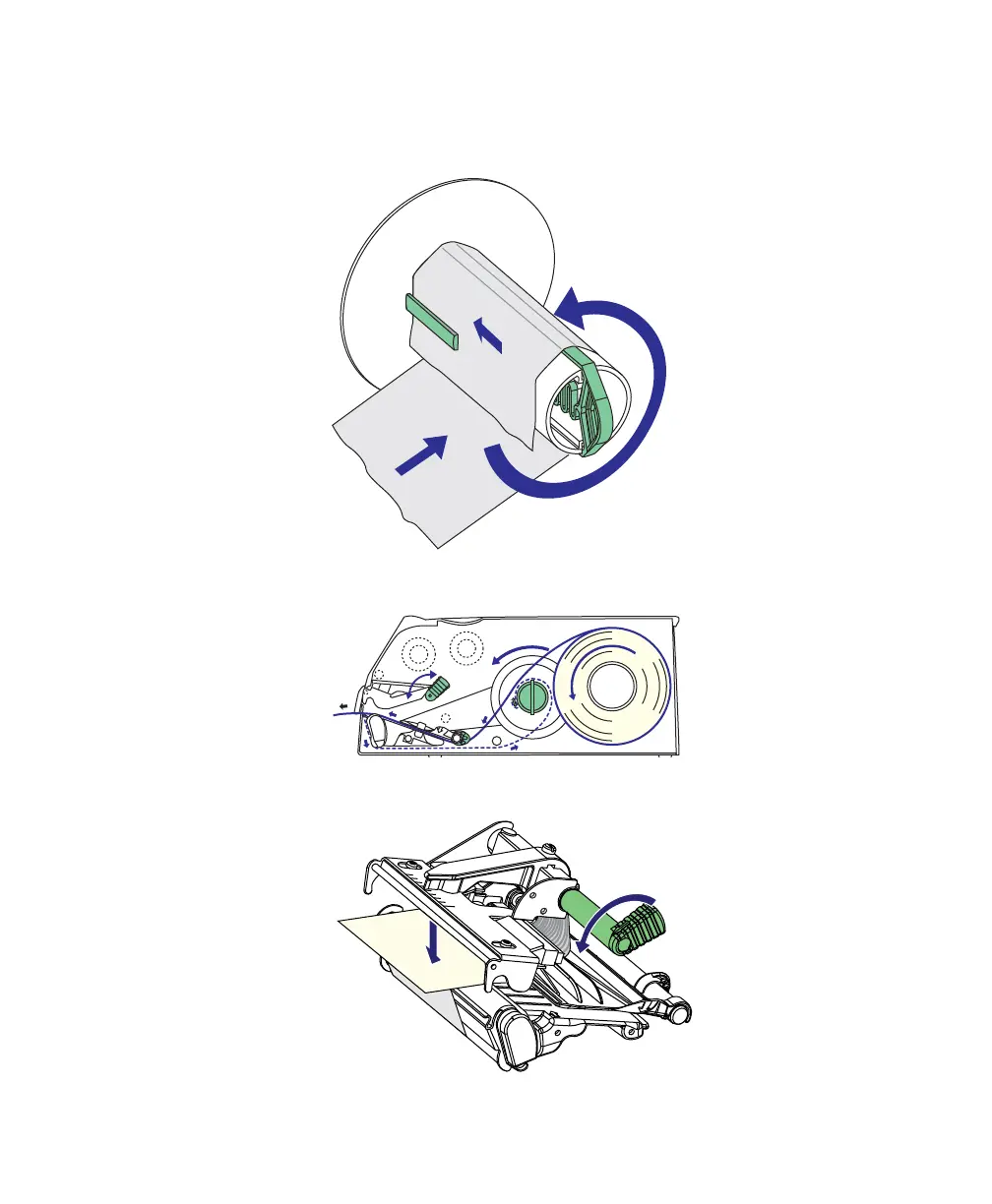

8 Insert the start of the liner under the lip of the takeup hub
and then rotate the hub counterclockwise a few turns to wind
up some of the liner.
9 This diagram shows the path the media and liner will take
through the printer.
10 Turn the printhead lift lever counterclockwise to engage the
printhead.
