Chapter 3 — Media Load

EasyCoder PF4i User’s Guide (IPL Version) 37

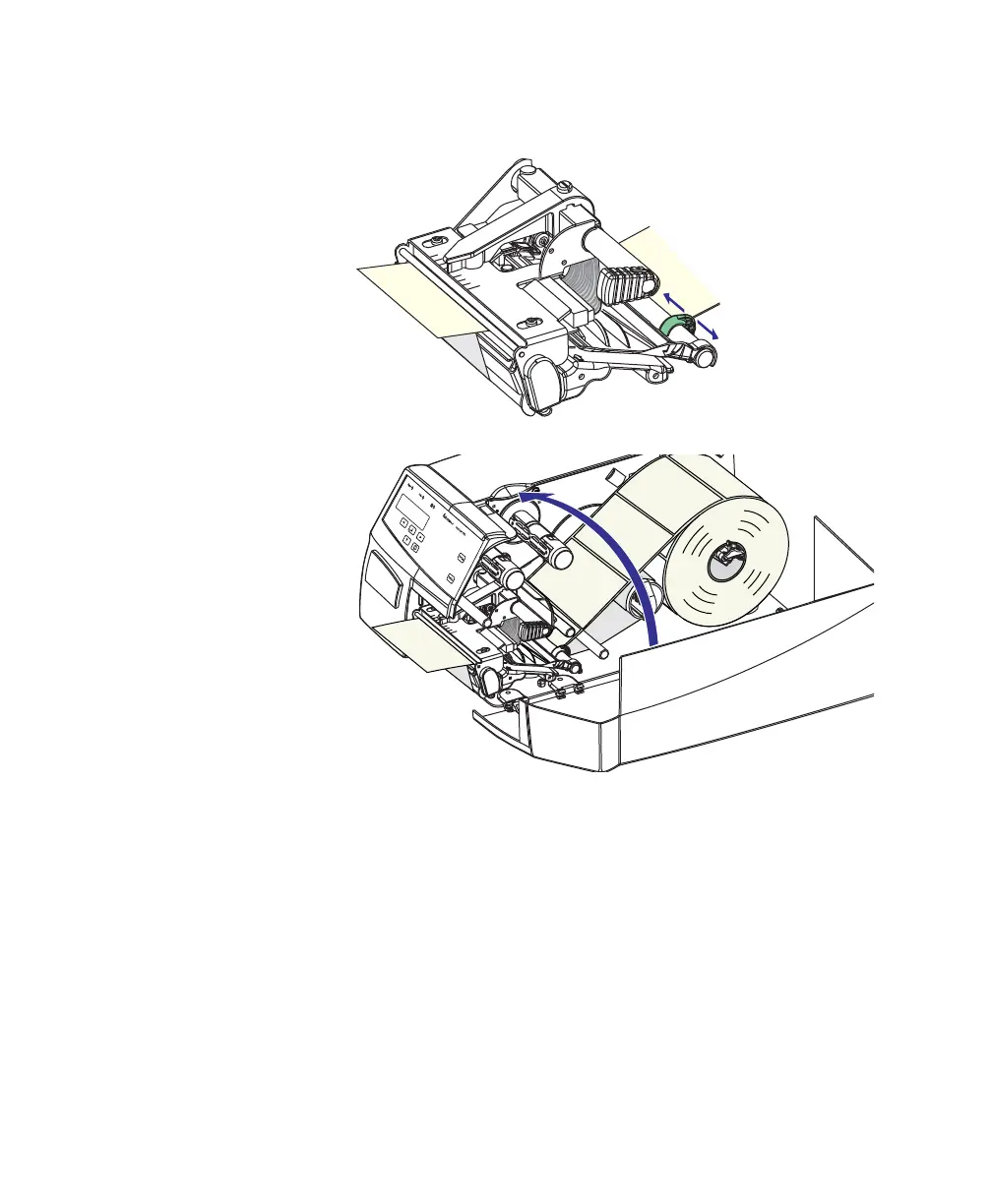

11 Adjust the position of the green edge guides so that the media

is guided with a minimum of play.

12 Close the side door.
