Intermec PC43t User Manual

Chapter 4 — Configure the Printer
94 PC23 and PC43 Desktop Printer User Manual
To upload or delete applications or resources from the printer web
page, the printer must be turned on and connected to your Wi-Fi or
Ethernet network.
1 On your PC, start a browser.
2 In the Location or Address field, type the printer IP address and
press Enter. The printer web page appears.

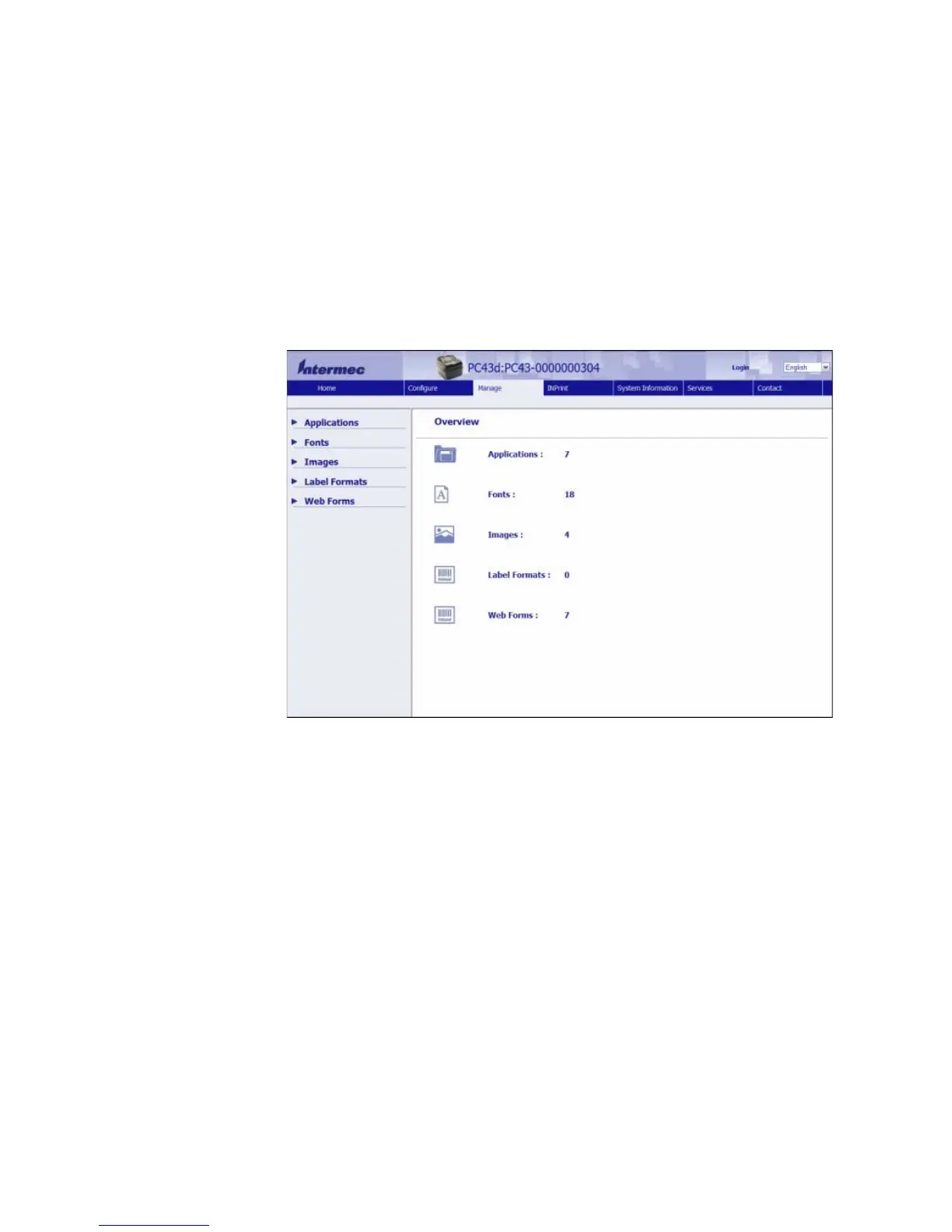

3 Click the Manage tab.
4 In the navigation list, click the type of file you want to upload or
delete: Applications, Fonts, Images, Label Formats, or Web
Forms. The page for that type of file appears, including a list of
Resident (Intermec-supplied) files of that type and a list of
Customer Downloaded files of that type (if any).
5 To upload an application or file to the printer:
a Click Browse to locate your application or file.
b Double-click the file to select it.
c Click Upload. The application or file uploads to the printer.
To delete an application or file, click the file name in the Customer
Downloaded list and then click Delete. The file is deleted.

Intermec PC43t Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	106 mm
Internal memory	128 MB
Built-in barcodes	AZTECCODE, Code 49, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code
Page description languages	IPL, XML, ZPL
Display	LCD
Product color	Black
Display resolution	480 x 234 pixels
Wi-Fi	-
USB port	Yes
Optional connectivity	Bluetooth, Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Maximum label width	118 mm
Maximum label length	1.727 m
Maximum roll diameter	127 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	281 mm
Width	210 mm
Height	182 mm
Weight	2700 g
