Intermec PC43t User Manual

Chapter 5 — Troubleshoot the Printer
PC23 and PC43 Desktop Printer User Manual 109
Restore Defaults from the Printer Web Page
If the printer is connected to an Ethernet or wireless network, you can
restore default settings from the printer web page.
1 On your desktop PC, start a web browser.

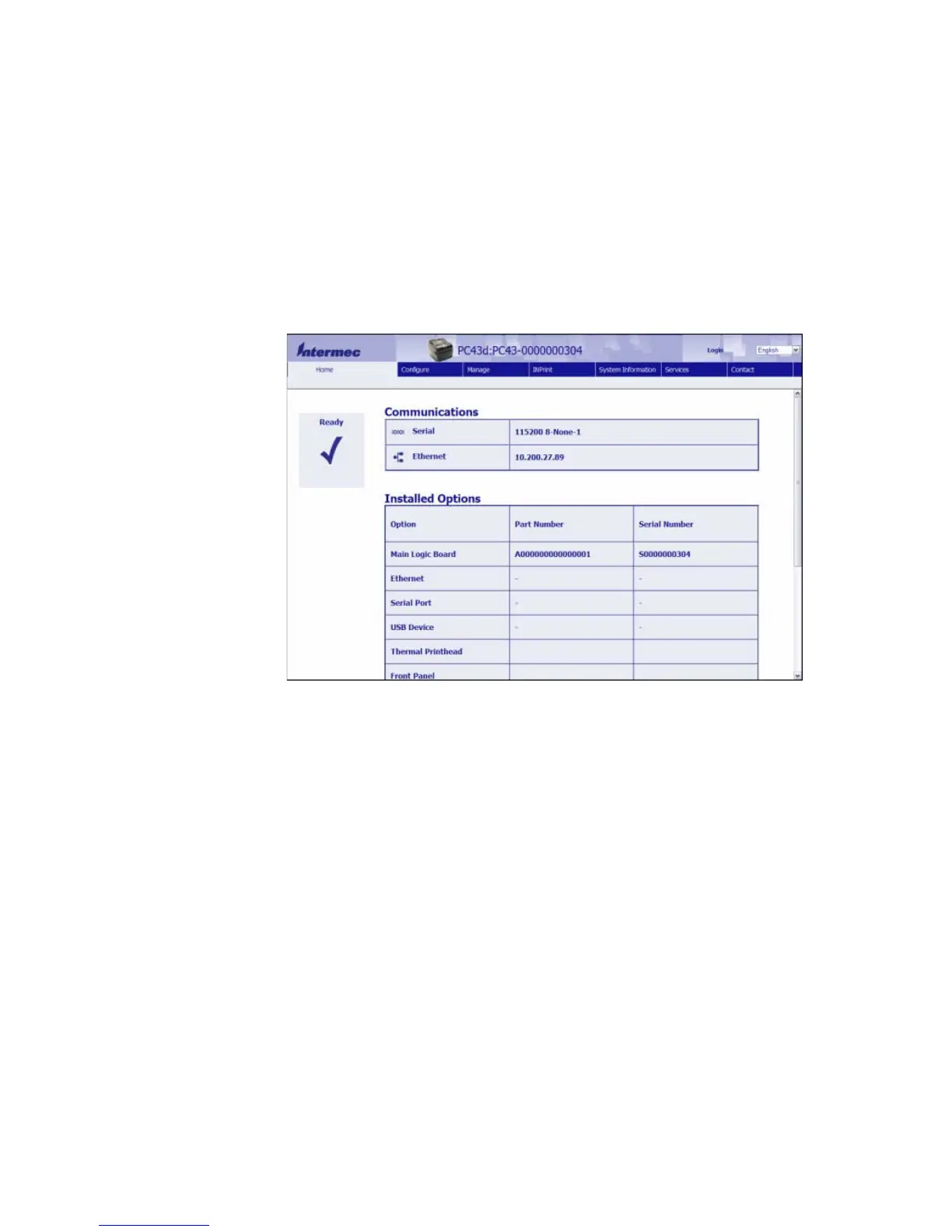

2 In the address field, type the printer IP address and then press
Enter. The printer web page appears.
3 Click Login in the upper right corner of the screen. The Login page
appears.
4 Type your Username and Password in the entry fields and then
click Login. The default username is itadmin and the default
password is pass.

Intermec PC43t Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	106 mm
Internal memory	128 MB
Built-in barcodes	AZTECCODE, Code 49, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code
Page description languages	IPL, XML, ZPL
Display	LCD
Product color	Black
Display resolution	480 x 234 pixels
Wi-Fi	-
USB port	Yes
Optional connectivity	Bluetooth, Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Maximum label width	118 mm
Maximum label length	1.727 m
Maximum roll diameter	127 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	281 mm
Width	210 mm
Height	182 mm
Weight	2700 g
