Intermec PC43t User Manual

Chapter 6 — Maintain the Printer
PC23 and PC43 Desktop Printer User Manual 117
Replace the Printhead
You need to replace the printhead periodically when it wears out due
to the rapid heating and cooling process used during printing. How
often you need to replace the printhead depends on factors such as
what type of images you print, the type of media or ribbon you use, the
amount of energy to the printhead, the print speed, and the ambient
temperature of the room you print in. The firmware detects the new
printhead when you restart the printer.
1 Turn off the printer and disconnect the power cord.
2 Pull one or both of the printer latches toward the front of the
printer and lift the printer lid.
For a thermal transfer printer, remove the ribbon.

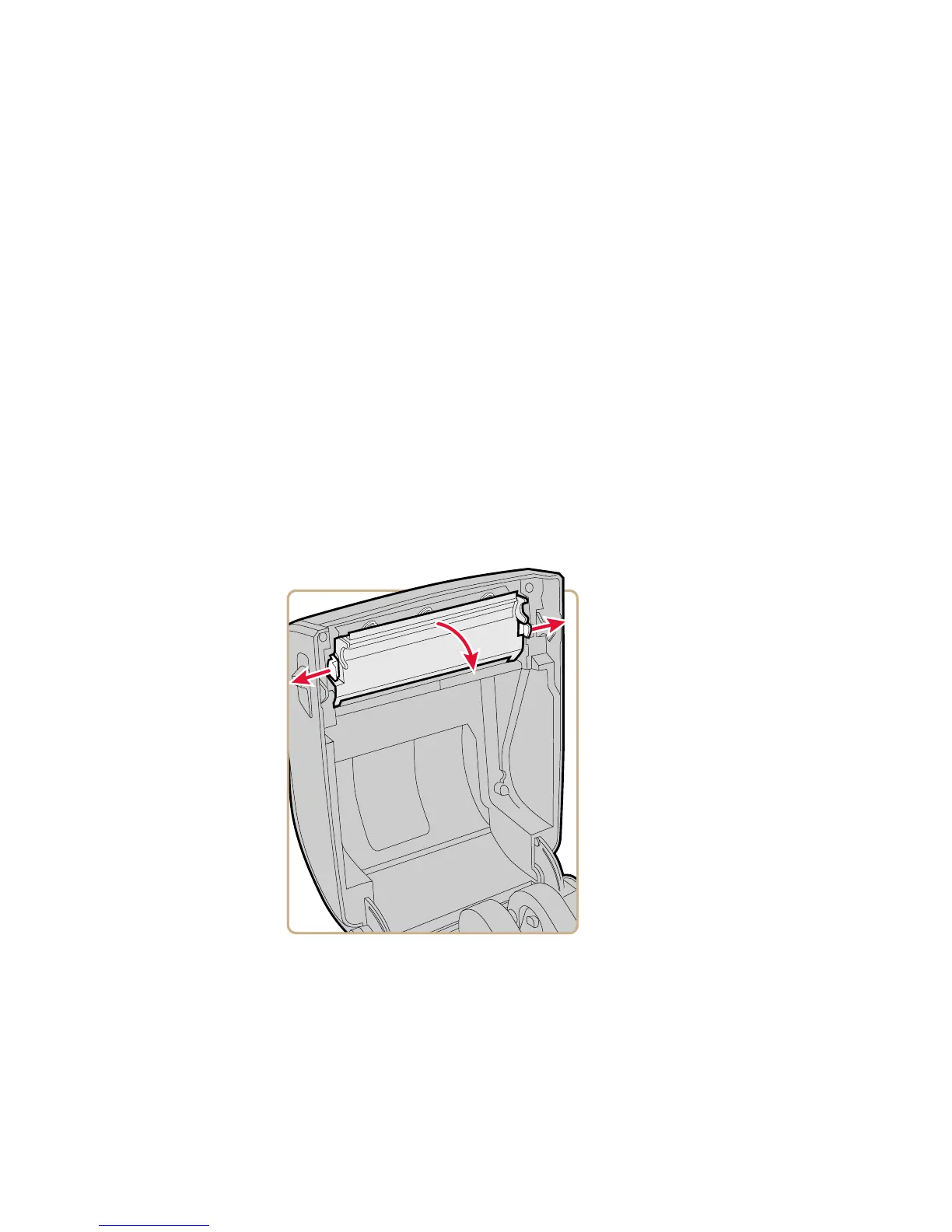

3 Press the printhead latches apart until the printhead slides
forward.

Intermec PC43t Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	106 mm
Internal memory	128 MB
Built-in barcodes	AZTECCODE, Code 49, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code
Page description languages	IPL, XML, ZPL
Display	LCD
Product color	Black
Display resolution	480 x 234 pixels
Wi-Fi	-
USB port	Yes
Optional connectivity	Bluetooth, Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Maximum label width	118 mm
Maximum label length	1.727 m
Maximum roll diameter	127 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	281 mm
Width	210 mm
Height	182 mm
Weight	2700 g
