Intermec PC43t User Manual

Chapter 1 — About the Printers
PC23 and PC43 Desktop Printer User Manual 31
3 Connect the battery base to AC power.
The battery begins to charge and the battery base LEDs turn on to
indicate charge status. The battery is fully charged in 4
hours.

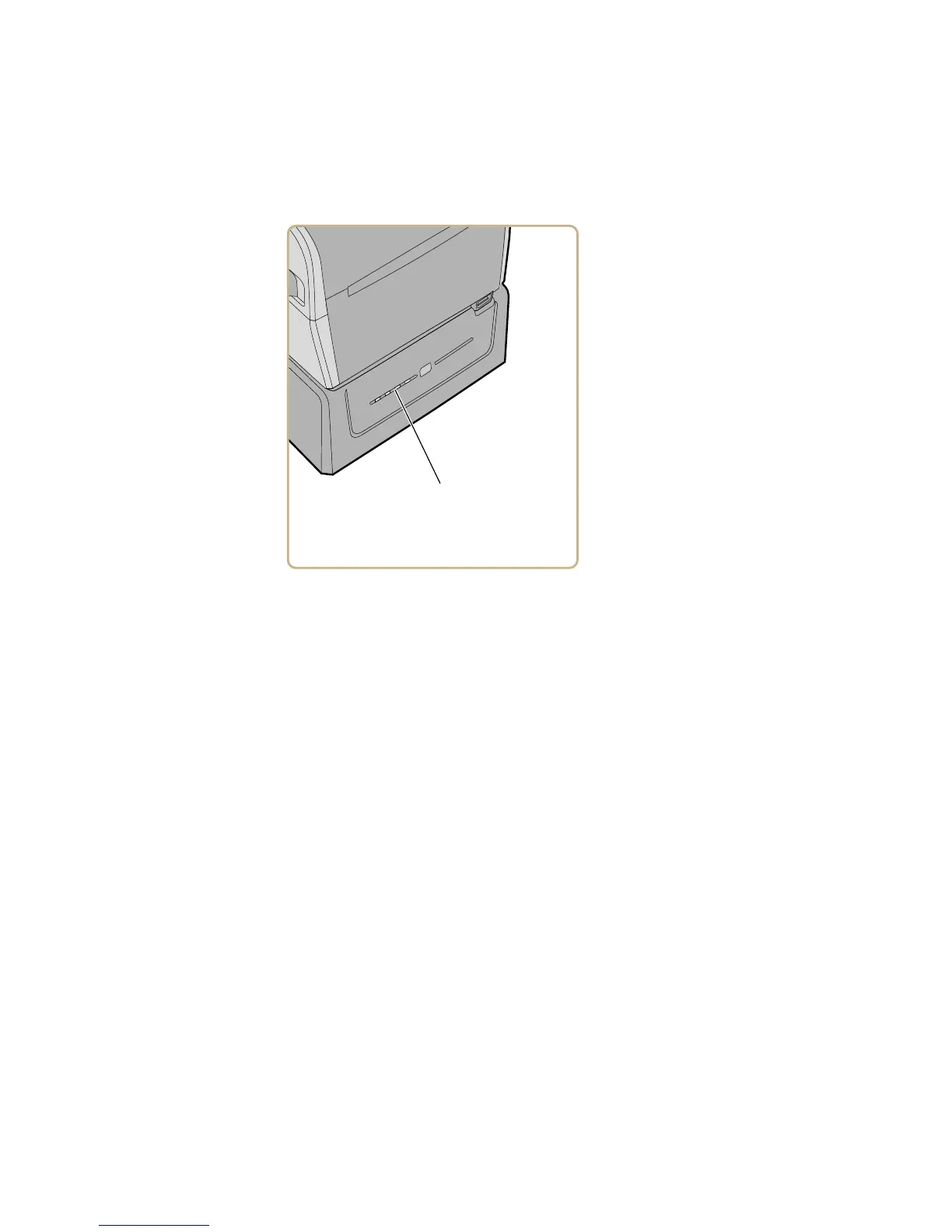

Power the PC43d with the Battery Base
After you charge the battery, you can use the battery base accessory to
power the PC43d printer. When the battery base is not connected to
AC power, press the Charge Level button on the front of the base to
turn on the LEDs and see the current charge level.
1 Charge the battery in the battery base.
2 Disconnect the power cable from AC power.
-&%T

Intermec PC43t Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	106 mm
Internal memory	128 MB
Built-in barcodes	AZTECCODE, Code 49, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code
Page description languages	IPL, XML, ZPL
Display	LCD
Product color	Black
Display resolution	480 x 234 pixels
Wi-Fi	-
USB port	Yes
Optional connectivity	Bluetooth, Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Maximum label width	118 mm
Maximum label length	1.727 m
Maximum roll diameter	127 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	281 mm
Width	210 mm
Height	182 mm
Weight	2700 g
