Intermec PC43t User Manual

Appendix C — Print Labels with INPrint
PC23 and PC43 Desktop Printer User Manual 163

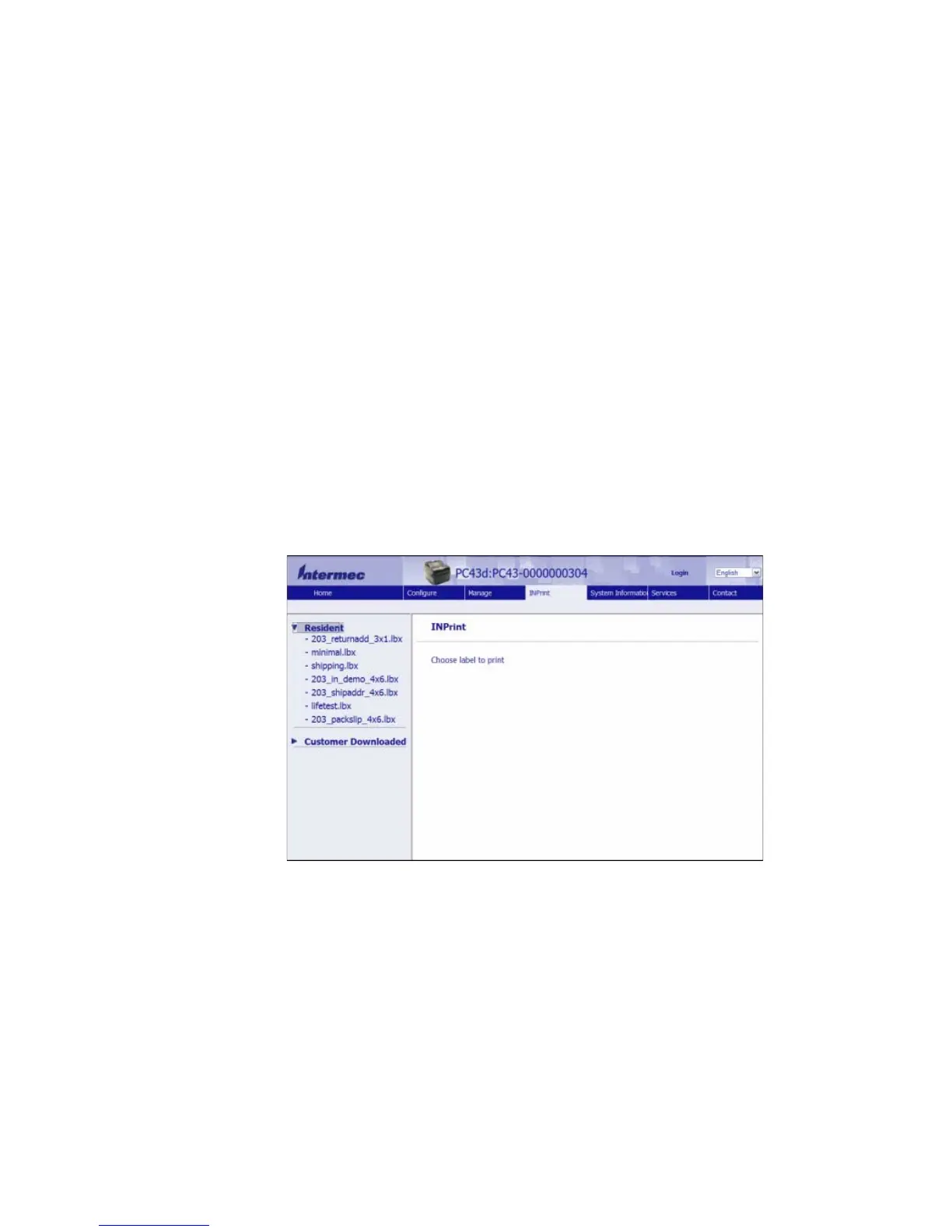

Print INPrint Labels
If the printer is connected to an Ethernet or Wi-Fi network, you can
print labels by entering information in a web form. You access web
forms through the printer web page.
1 On your desktop PC, start a browser.
2 In the Location or Address bar, type the printer IP address and
press Enter. The printer web page appears.
3 Click the INPrint tab.
4 Select the web form you want to print:
• If you created the web form yourself, click Customer
Downloaded and then select the web form in the list.
• To use one of the Resident (Intermec-supplied) web forms, click
Resident and then select the web form in the list.
5 Type information in the web form as needed.
6 (Optional) To preview the label on screen, click Preview.
7 To print the label, click Print.

Intermec PC43t Specifications

General

Color	No
Print technology	Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	106 mm
Internal memory	128 MB
Built-in barcodes	AZTECCODE, Code 49, Data Matrix, EAN128, EAN13, EAN8, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code
Page description languages	IPL, XML, ZPL
Display	LCD
Product color	Black
Display resolution	480 x 234 pixels
Wi-Fi	-
USB port	Yes
Optional connectivity	Bluetooth, Ethernet, Wireless LAN
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Maximum label width	118 mm
Maximum label length	1.727 m
Maximum roll diameter	127 mm
Input current	1.5 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Depth	281 mm
Width	210 mm
Height	182 mm
Weight	2700 g
