Invacare Kite - Replacing the Lifter Actuator

Invacare
®
- Kite
SERVICE MANUAL
103
8.17.2 Replacing the lifter actuator
Requirements:
• Screwdriver flat, width 6 mm
• Large screwdriver
• Flat screwdriver
• Remove legrests.
• Run the lifter up to if possible.
• Switch the electronics OFF on the remote.
• Secure the seat.

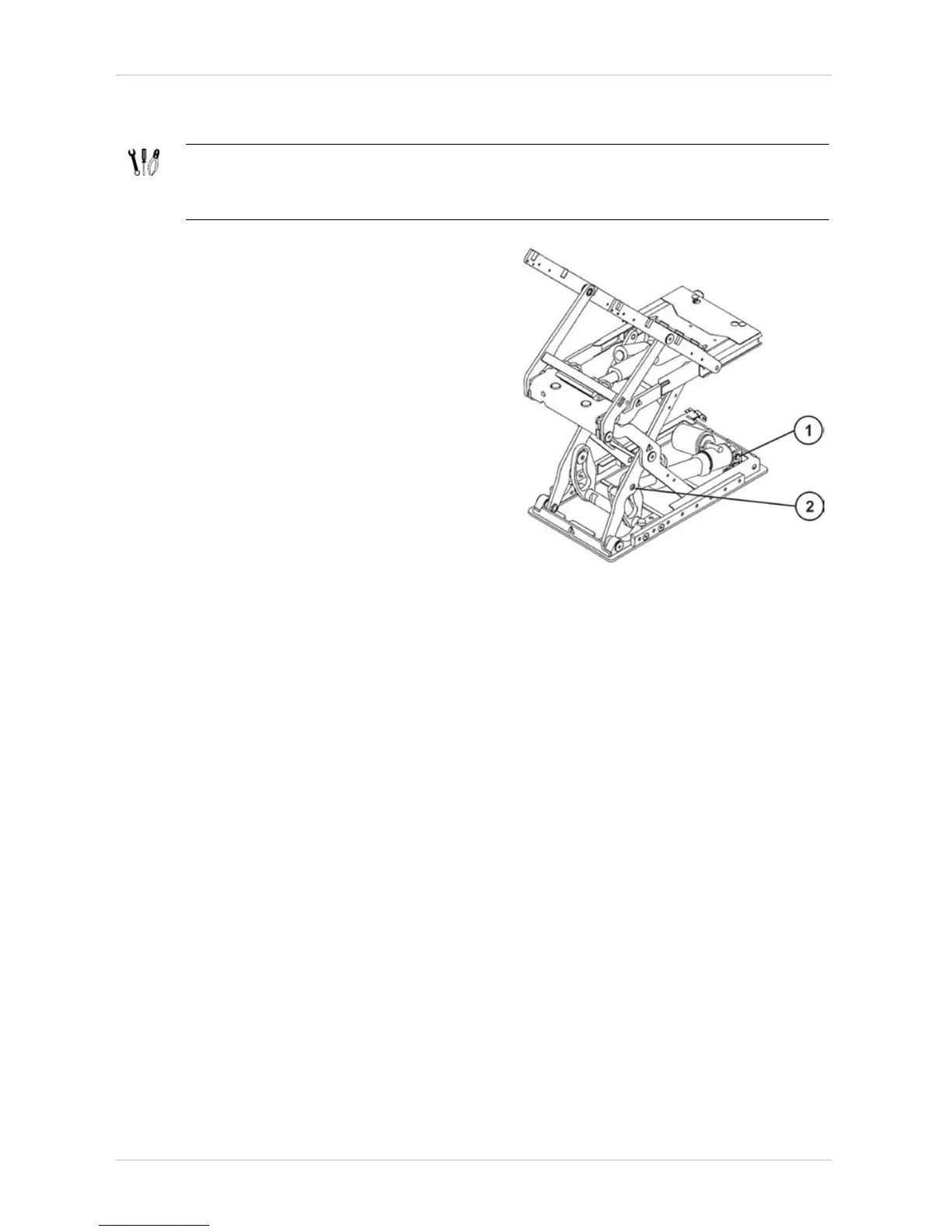

• Pull the plug from the actuator.
• Bottom fixing bolt (2) secured with snap rings
– Remove a snap ring using a screwdriver
and remove the bolt.
• Top fixing bolt (3) with slot –
Loosen the fixing bolt with a screwdriver.
Remove the bolt.
• Replace actuator.
• Reassembly of the actuator takes place in
the reverse order.
• Connect the plug of the actuator cable to the
actuator.
• To complete, check all seat tilting function.
If the lifter cannot be raised, a cover can be removed from the upper rear side of the module. This
way it is possible to reach the lower fixation bolt of the actuator.
