8.17.4 Replacing the backrest actuator
Dismantling the backrest actuator:

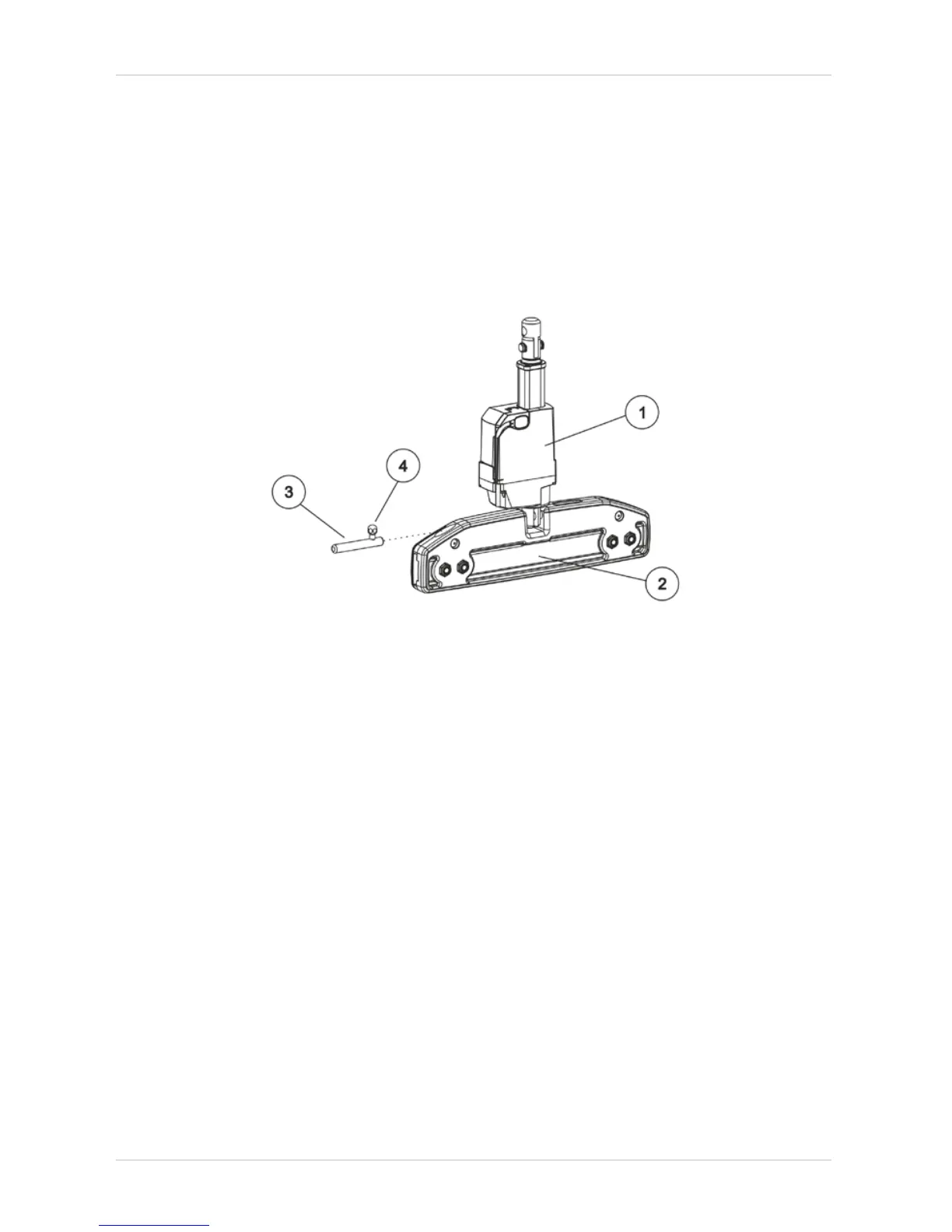

• Pull the cable off directly where it is connected to the actuator (1)
• Detach the bracket of the actuator at the top and bottom; to do this, slide the bolts (3) to the
side using the lever (4) and tilt the actuator (1) out of the backrest clamp (2).
• Replace actuator.
Refitting the backrest actuator:
• Assemble the parts in the reverse order.
