8.7.3 Replacing the rear light completely (LED lighting unit)
Note
Replacing an individual LED is not possible. If there is a defect, replace the entire rear light.
Uninstalling the tail light:
• Switch the electronics OFF on the remote.
• Remove the rear cover, as described in chapter 8.1.1.

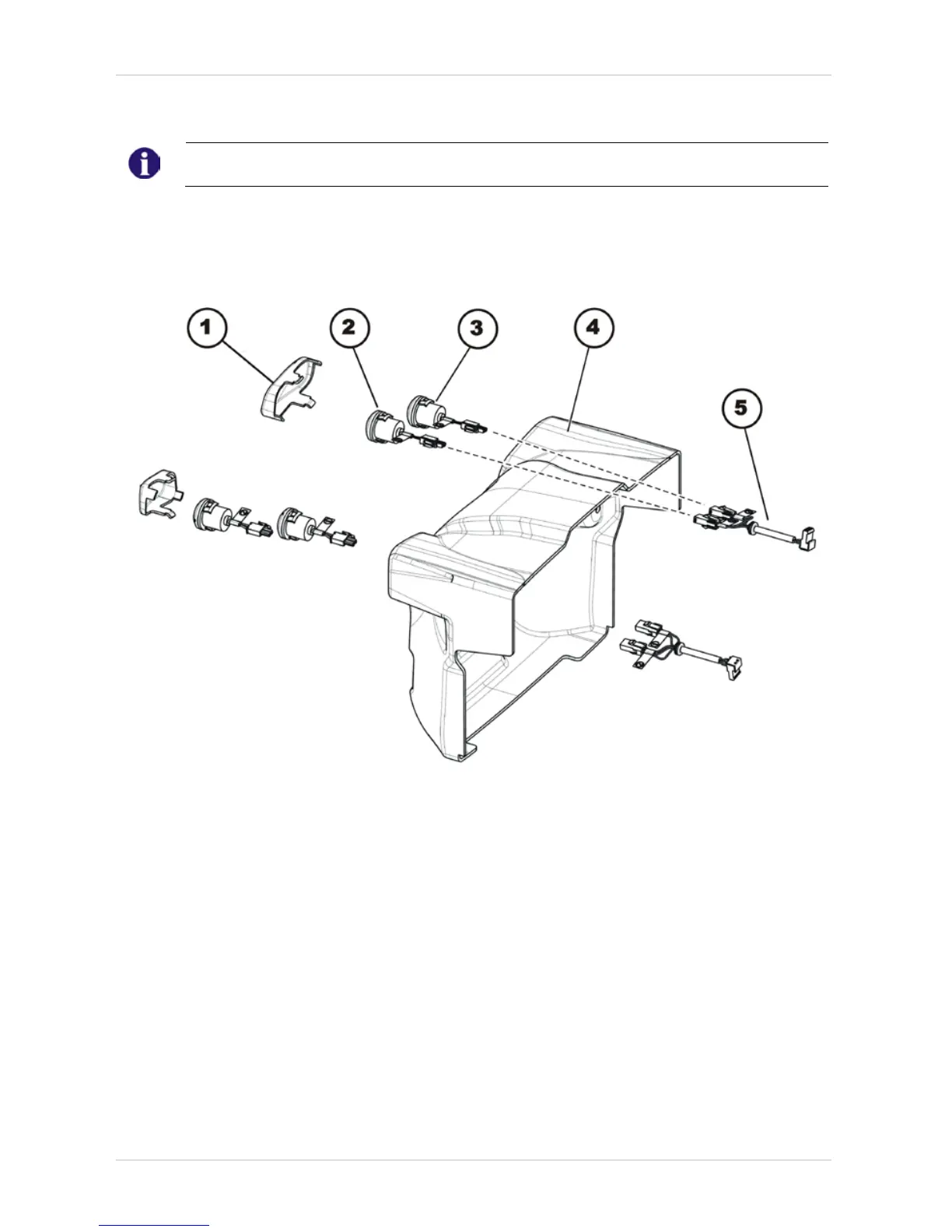

• Press the clips of the tail light lens (1) together slightly
• Pull the tail light lens carefully off of the rear cover (4).
• Disconnect the plug of the tail light (2) and of the turn signal (3) from the tail light cable (5).
• Press the clips of the tail light lens or the turn signal together slightly.
• Pull the corresponding light towards the rear and out of the rear cover.
• Replace the faulty part.
Installing the tail light:
• Re-assembly is done in reverse order.
• Pay attention to markings on the plugs of the tail light cable, of the tail light and of the turn
signal.
• Test all functions of the vehicle.
