Removing the actuator module:
• Switch the electronics OFF on the remote.
• Remove the rear cover, as described in chapter 8.1.1.
• Take exact note of the positions of all cables and the sockets that they are connected to. Mark
the connectors and sockets or take a photograph with a digital camera.

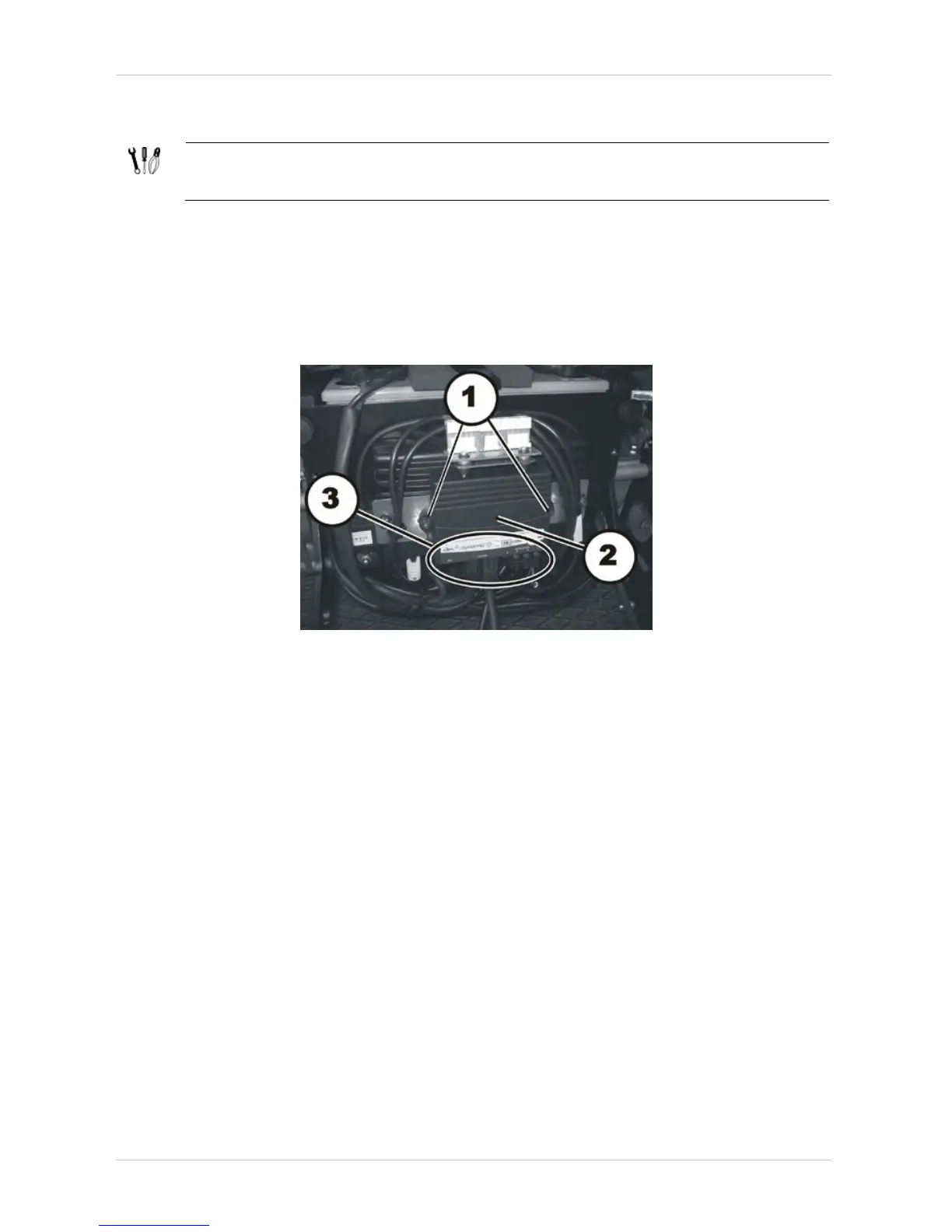

• Disconnect the plugs (3) from the actuator module (2).
• Loosen both screws (1) with a Phillips screwdriver.
• Replace the actuator module.
Installing the actuator module:
• Assemble the parts in reverse order.
• Reconnect all cable connectors to their former positions.
• Plug all free slots with a suitable rubber stopper, see chapter 4.2.
• The last step is to test all functions of the vehicle.
